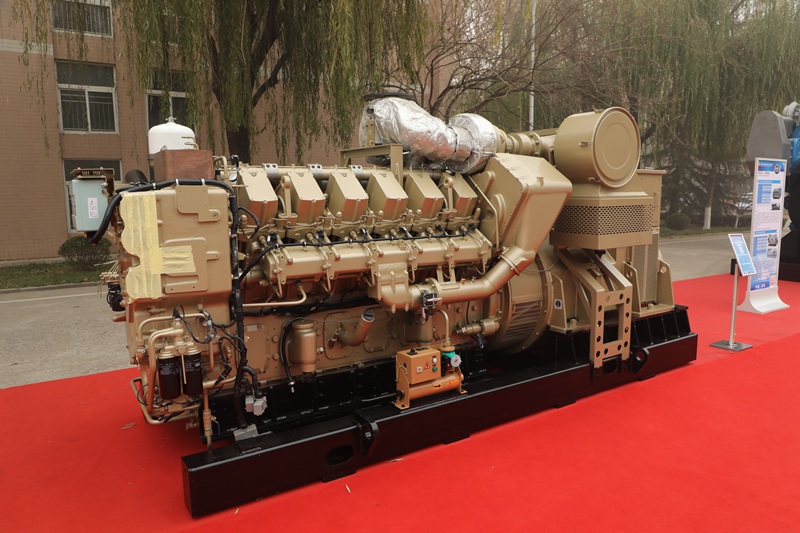

Diesel Genset 12V175 Series (1200-1400kW)
Product Advantage
12V175 diesel engine has the characteristics of high supercharging, low energy consumption, high reliability and long life,Its dynamic performance, economy, reliability and emission index have reached the international advanced level through the use of electronic control, high pressure common rail, Miller cycle, exhaust after treatment, high efficiency supercharger and other new technologies. The average effective pressure of diesel engine reaches 2.0mpa, the first overhaul period reaches 35,000 hours, and the bare engine emission meets GB20891 II.
Technical Characteristic
12V175 diesel generator set is a high performance power set developed for the working condition of electric drilling machine.According to the characteristics of oilfield working conditions, the genset been designed in such aspects as starting performance, sudden reduction capacity and continuous working capacity: In order to realize unattended, the genset installed a remote monitoring system, which realized the real-time recording of the genset's field data and remote monitoring on the Internet.
Genset model | 1200GF50 | 1400GF |
Engine model | 12V175ZL-1 | 12V175ZL |
Alternator model | IFC series | |
Power | 1200kW | 1400kW |
Speed | 1500r/min | 1800r/min |
Voltage | 600V | |
Frequency | 50Hz | 60Hz |
Power Factor | 0.7 | |
Dimension | 8286×2800×2861mm | |
Weight | 16600kg |
