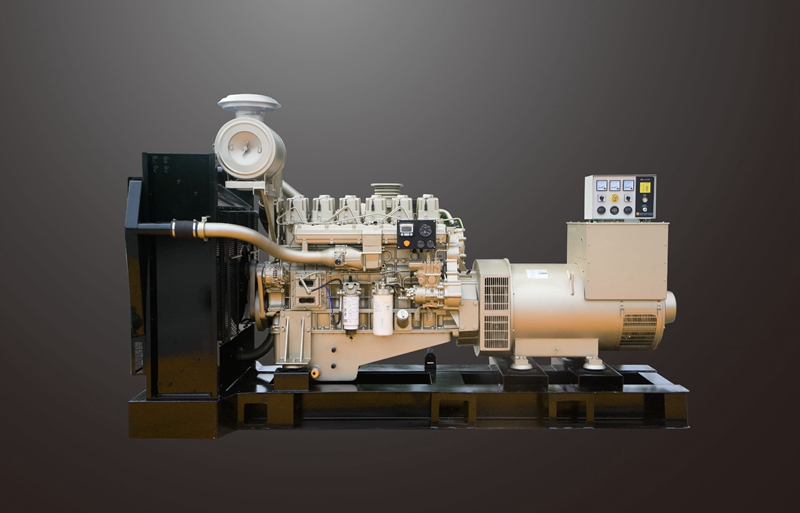

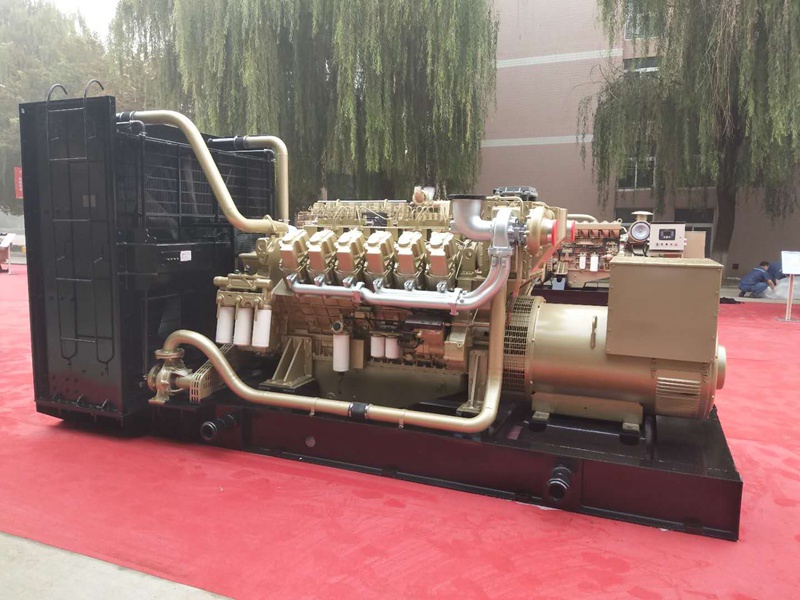

Diesel Genset 140 Series(400-900KW)
Product advantage
Jichai 140 series diesel engine is a high performance high speed diesel engine with all intellectual property rights developed by Jichai and AVL.The products are mainly used in light oil drilling rigs, petroleum machinery, and mobile power stations, construction machinery, heavy trucks and other fields.Can meet all kinds of power generation needs.It has the characteristics of compact shape, simple operation and maintenance, and high power index.
Technical Characteristic

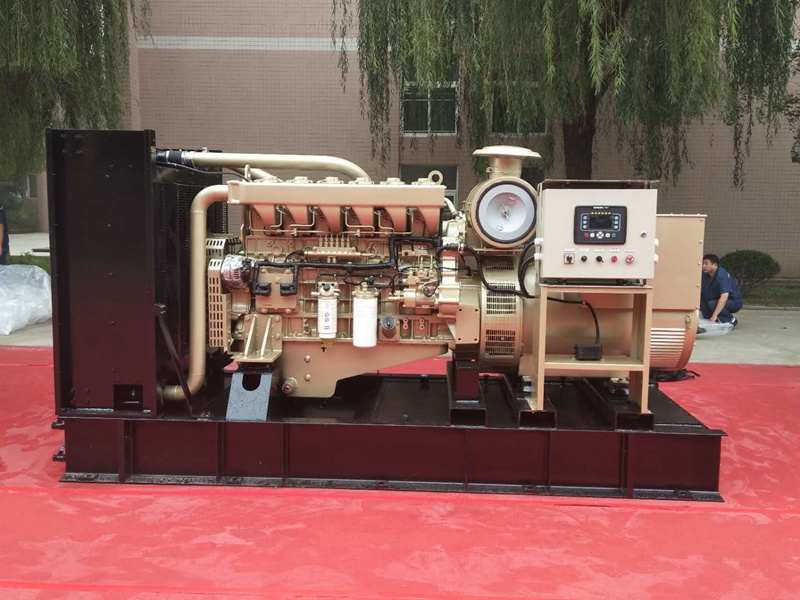

Genset model | 400GF30 | 450GF30 | 800GF30 | 900GF30 |
Engine model | JC15 | JC15D-3 | JC30 | JC30D-3 |
Alternator model | XN5C series | |||
Power | 400 | 450 | 800 | 900 |
Speed | 1500r/min | 1800r/min | 1500r/min | 1800r/min |
Voltage | 400V/6300V/10500V | 400V/6300V/10500V | 400V/6300V/10500V | 400V/6300V/10500V |
Frequency | 50Hz | 60Hz | 50Hz | 60Hz |
Power Factor | 0.8 | |||
Dimension | 3420x1270x1654mm | 3420x1270x1654mm | 4500x1941x2031mm | 4500x1941x2031mm |
Weight | 3300kg | 3300kg | 6500kg | 6500kg |
Our Product
Our Company

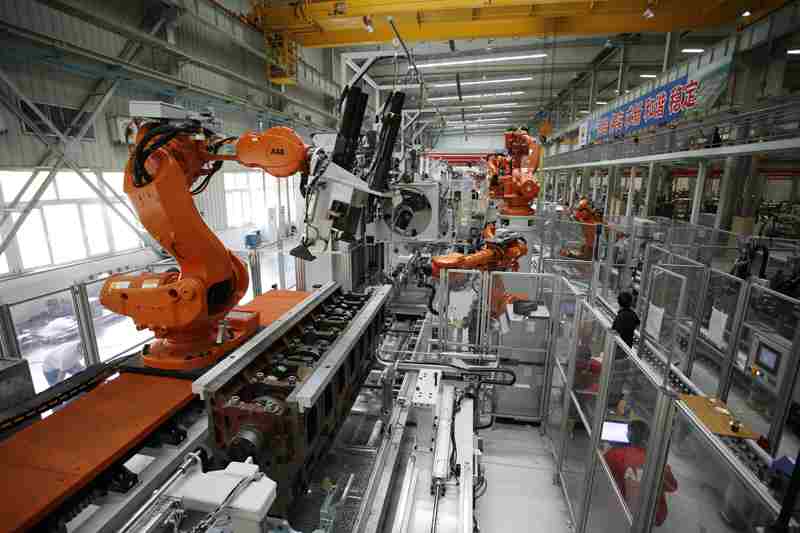

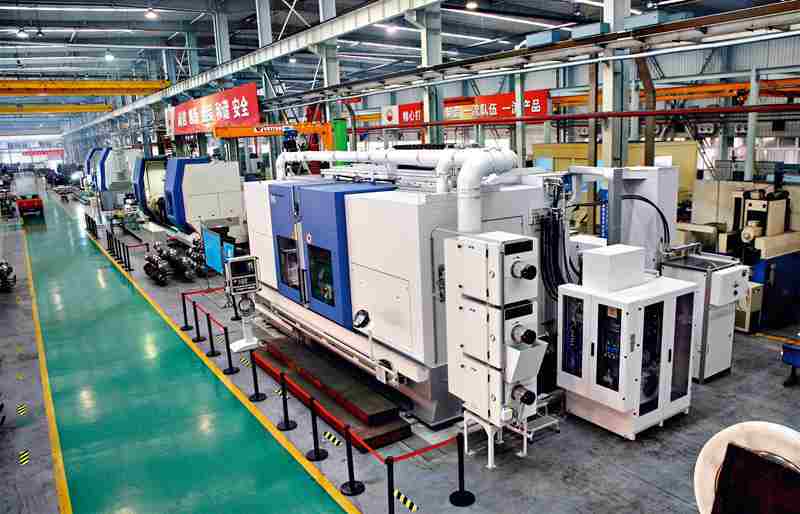

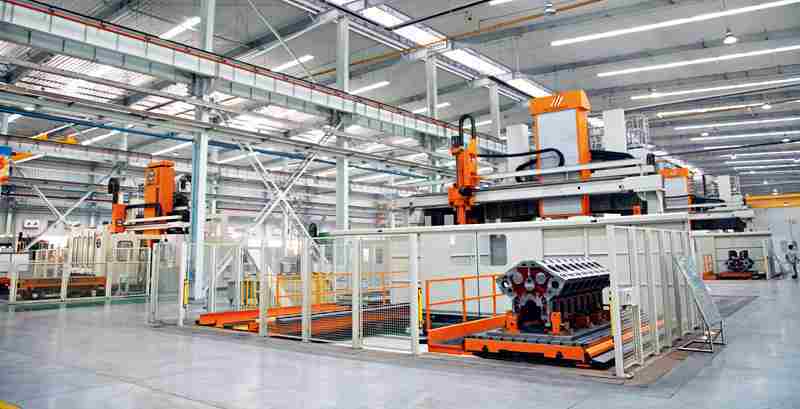

Our Factory
