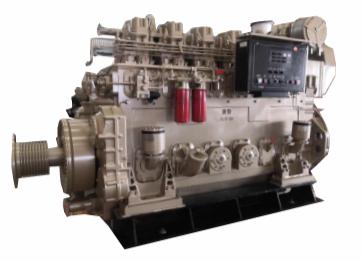

S6190 Series Marine Diesel Engine(535-900kw)

The products cover a wide range of power, can meet the needs of customers in different power segments, products have passed the CCS certification.

Contact Now E-Mail Telephone WhatsApp

Product Details

Technical Characteristic

Engine Model	S6190ZLC-1	S6190ZLC-5	S6190ZLC-2	S6190ZLC-4	S6190ZLC-7
Type	Four strokes, In-line, Turbocharged and inter cooling, Water-cooled,Direct injection
Rated power	900kw/1225hp	825kw/1122hp	750kw/1020hp	675kw/918hp	535kw/728hp
Speed	1200rpm	1100rpm	1000rpm	900rpm	750rpm
Bore	190mm
Stroke	210mm
Total displacement	46.78L
Compression ratio	14.5:1
Minimal stable speed	600kw	440kw	400kw	360kw	300kw
Fuel consumption	≤195g/kW.h
Oil consumption	≤0.9g/kW.h
Starting method	Electric starting or air starting
Outline size(LxWxH)	3144x1571x2246mm
Net weight	7200kg
