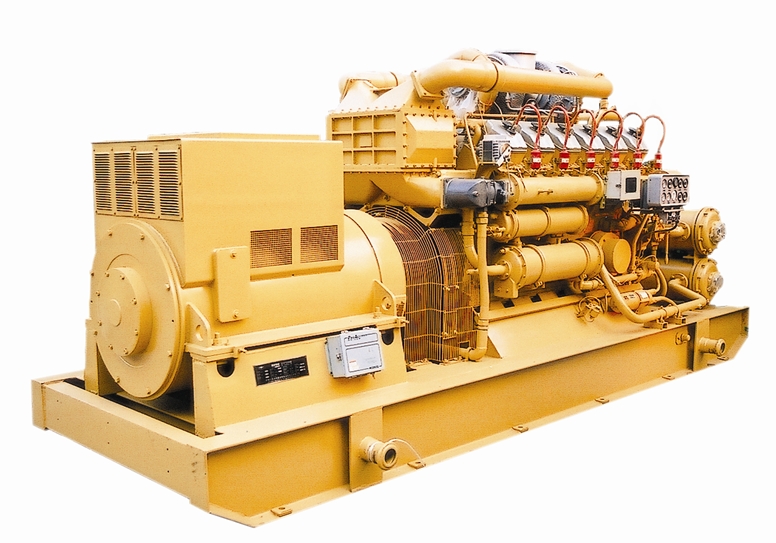

500KW Gas Generator

Products advantages:

In cooperation with the WOODWARD Company of the United States, A kind of pre-mixed gas engine with a supercharger is developed by utilizing the internationally advanced external gas mixing method, advanced electronic control technology, and rarefied combustion control strategy. This series of products has been put on the market nearly a thousand units, cost-effective, with good control and reliability.

Contact Now E-Mail Telephone WhatsApp

Product Details

500KW gas generator

Characteristic 127 series

▪Production code: 127/408

▪Woodward controller

▪Magnetor ignition

▪Ignition plug, high pressure coil

▪Diaphragm mixer

▪Intake-gas pressure:100-400kpa

▪Natural gas、oilfield associated gas

▪Mainly used in natural gas power generation and oil field drilling power fields.

Genset Model	500GF-T
Alternator model	Brush-less Excitation, Automatic Voltage Regulation
Rated power	500kW
Rated voltage	400V/6300V/10500V/480V/13800V
Rated frequency	50/60Hz
Rated power factor	0.8
Protection class	IP23
Insulation class	H
Engine Model	12V190ZDT-2
Type	Four storkes, V-type, inter-cooling, Spark plug ignition, Electric controller, Outer mixed
No. of cylinder	12
Bore	190mm
Stroke	210mm
Total displacement	71.5L
Rated speed	1000r/min
Rated power	552kW
Gas consumption	≤11386kJ/kW.h
Oil consumption	≤0.8g/kW.h
Cooling type	Open type-cooling tower/Closed type-Vertical or Horizontal Radiator
Lubrication method	Pressure and splash lubrication
Starting method	Electric starting
