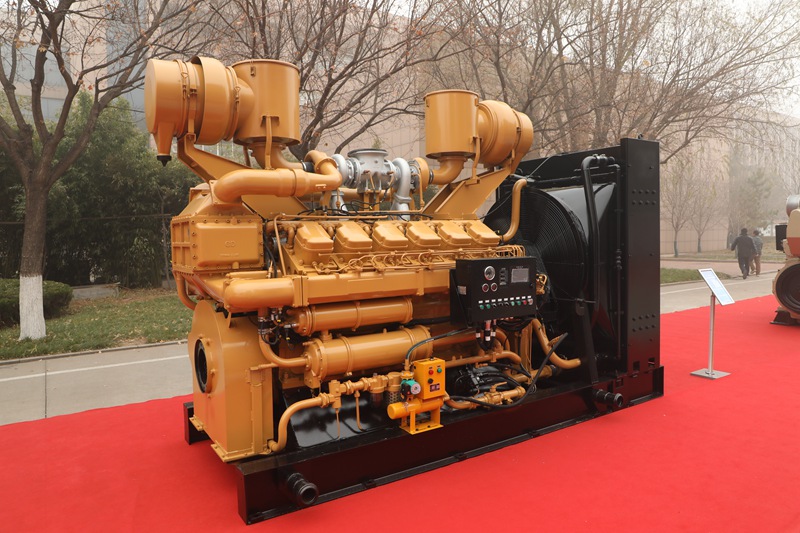

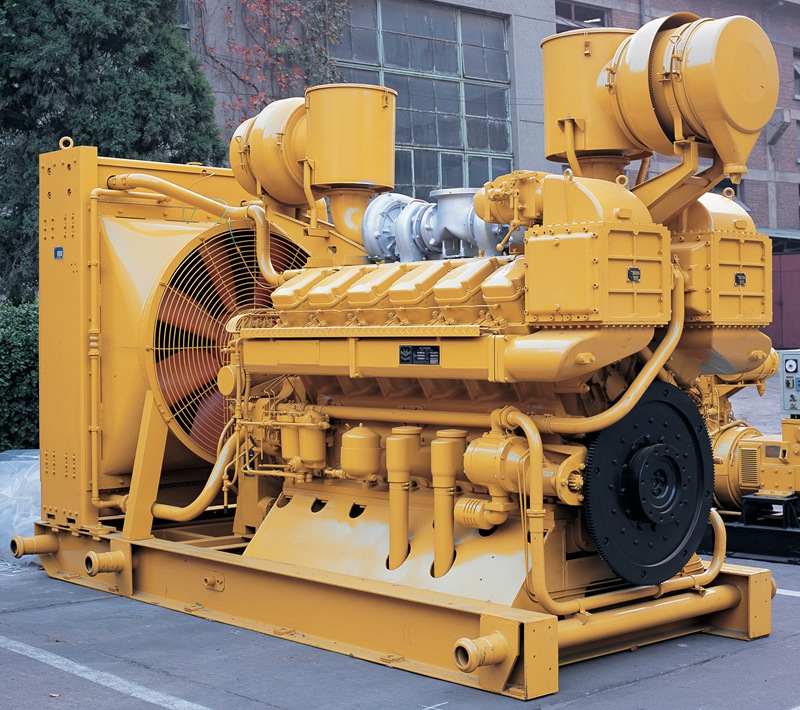

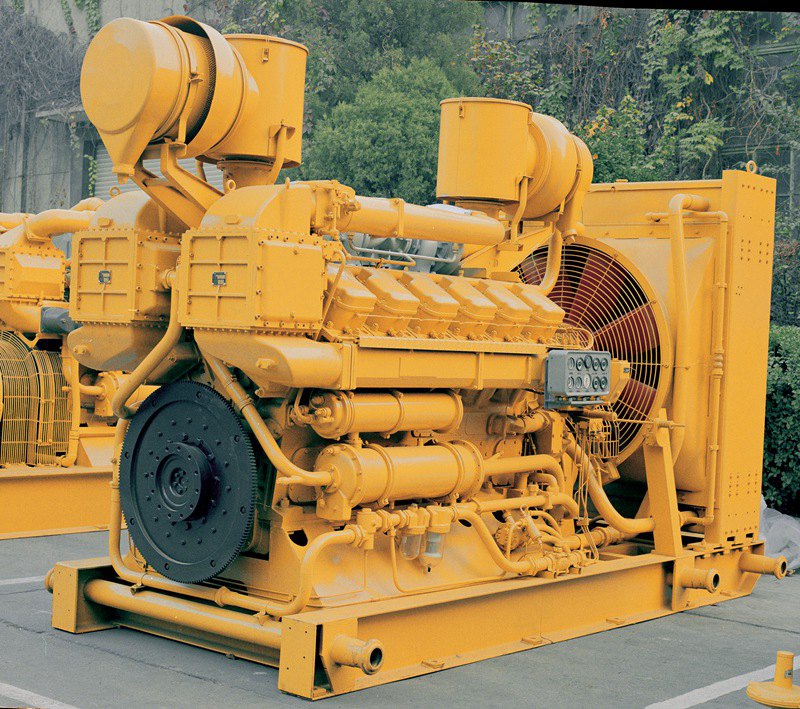

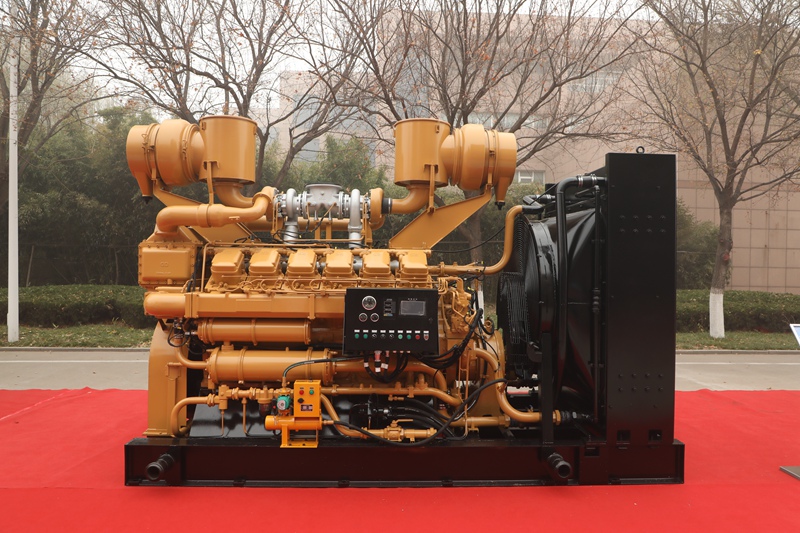

2000 Series Engine with fan and radiator (560-860kW)

Brief Indroduction

On the basis of Z12V190B diesel engine, the 2000 series diesel engine has been greatly improved in terms of improving the reliability, economic performance and power performance of diesel engine, solving three leaks, appearance quality and maintenance, etc., so as to better meet the power requirements of various oil drilling rigs, generator sets and construction machinery.2000 series diesel engine can be matched with torque converter engine set, Hydraulic transmission coupling set and diesel generator set, used for driving drilling rigs or mud pumps, and can also be matched with fire pump, flood pump, etc


Contact Now E-Mail Telephone WhatsApp
Product Details

Technical Characteristic

Engine with fan and radiator

Engine model

G12V190PZL

G12V190PZL-1

G12V190PZL-2

G12V190PZL-3

AG12V190PZL

AG12V190PZL-3

Injection system

Monolithic plunger type sundstrand pump

ECU electric control jet sundstrand pump

Governor

Mechanical speed control or electrical control

Electronic speed governor

Cylinders & Arrangement

12 cylinders,V type

Bore

190mm

Stroke

210mm

Rated power

860kW

700kW

560kW

810kW

810kW

810kW

Speed

1500r/min

1200r/min

1000r/min

1300r/min

1500r/min

1300r/min

Displacement

71.45L

Fuel Consumption

≤209g/kw.h

≤202g/kw.h

Oil Consumption

≤1.6g/kw.h

Oil Pan Capacity


200L

Dimension

3860x2040x2678mm

4301x1980x2766mm

Weight

8100kg

8200kg
