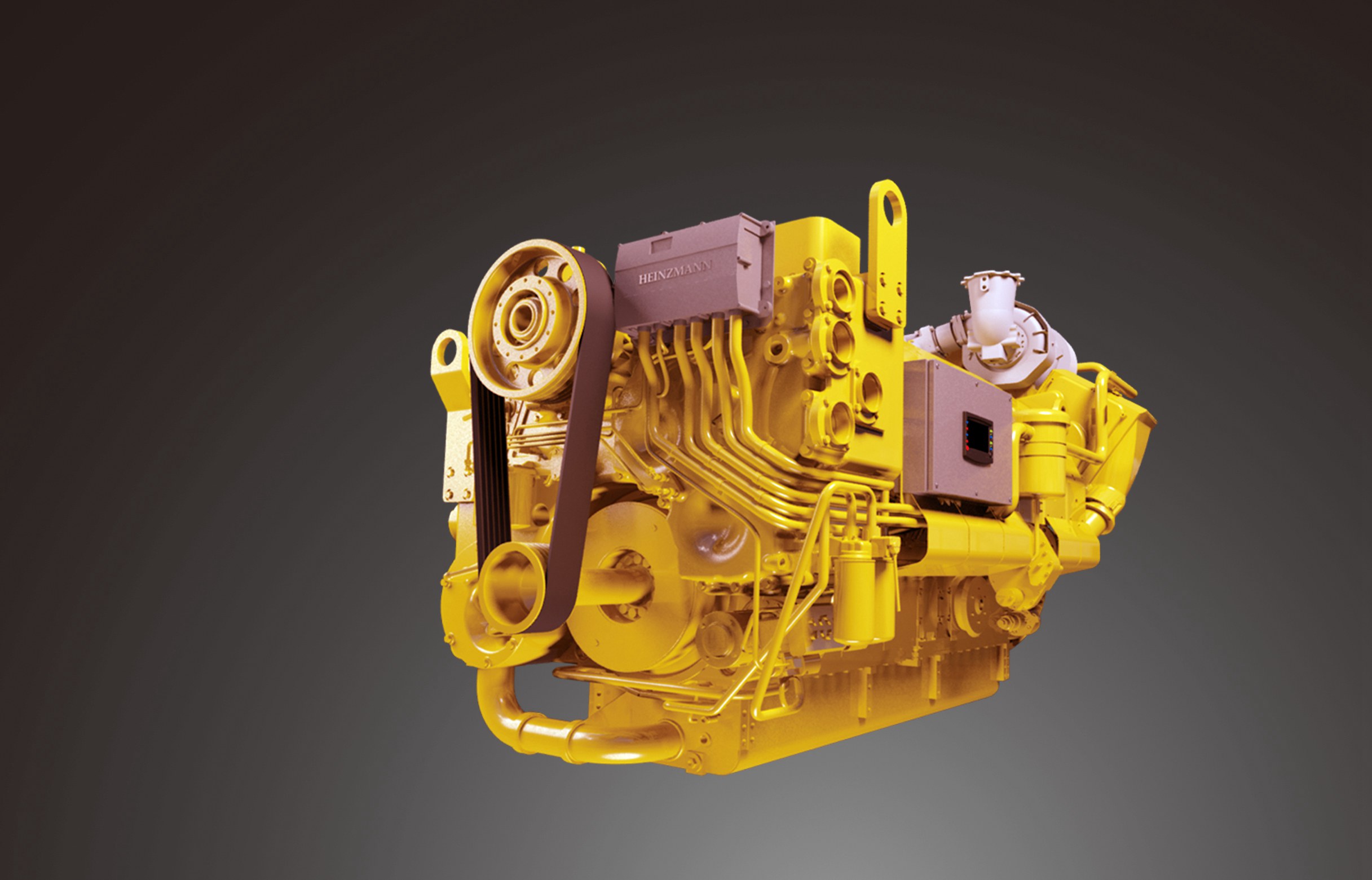

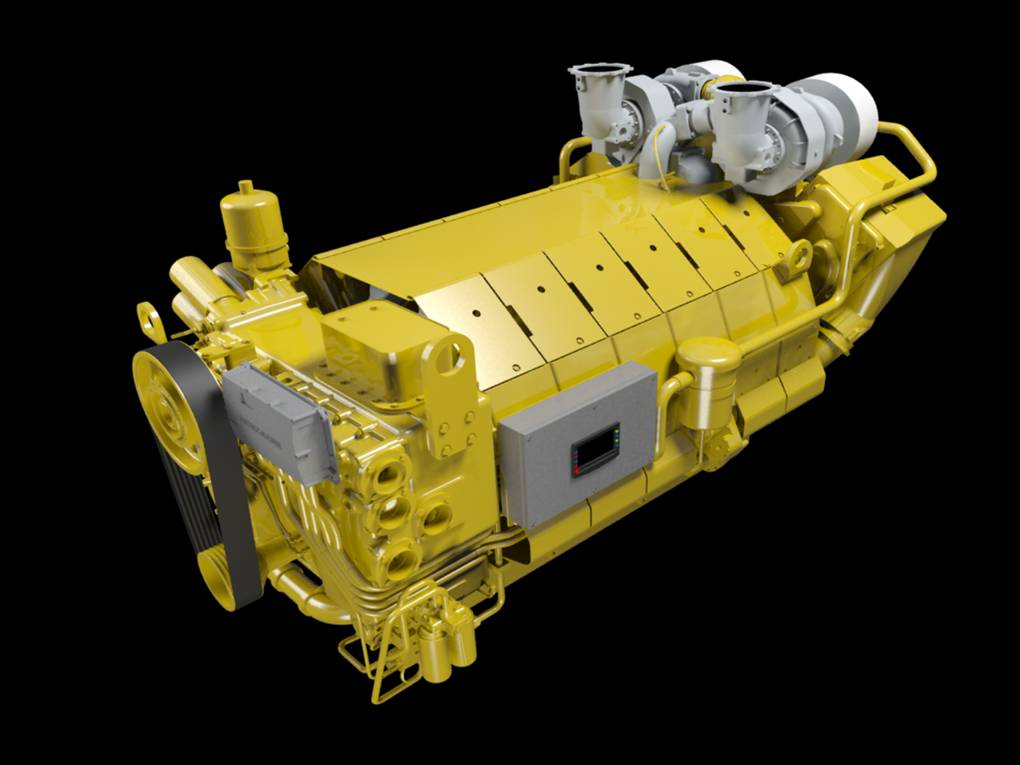

12V175 Diesel Engine 1097kW

Brief Introduction

12V175 diesel engine with high pressure, low energy consumption, high reliability, long life characteristics, Through the use of electronic control, high pressure common rail, Miller cycle, exhaust post-treatment, high efficiency supercharger and other new technologies,the engine  power performance, economy, reliability, emission index and other aspects reach the international advanced level: the average effective pressure of diesel engine reaches 2.0MPa, the first overhaul period reaches 35,000 hours, the bare-machine emissions meet GB20891 II.



Contact Now E-Mail Telephone WhatsApp
Product Details

Technical Characteristc

Engine model

12V175PZL-1/0

Injection system

ECU electric monoblock pump

Governor

Electronic Speed Governor

Cylinder&Arrangement

12 cylinders,V type

Bore

175mm

Stroke

190mm

Rated power

1097kW

Speed

1200r/min

Displacement

54.8L

Fuel consumption

≤200g/kw.h

Oil consumption

≤0.6g/kw.h

Oil Pan Capacity

278L

Dimension

3048x1848x2070mm

Weight

10300kg

Our Product


Our Company


Our Factory

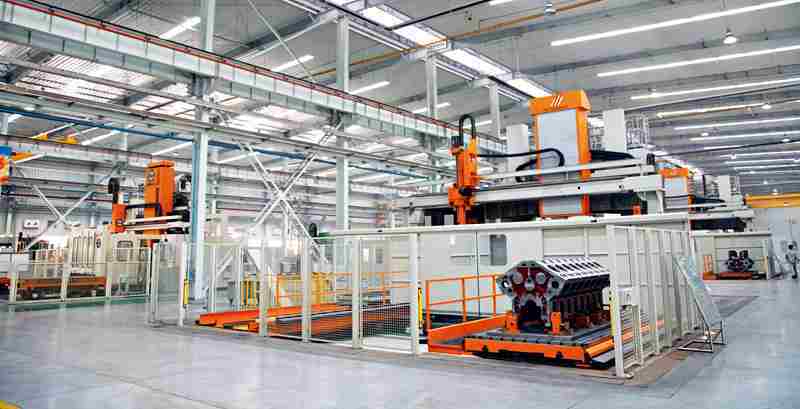

机体加工 (1) Linea de bloque.jpg

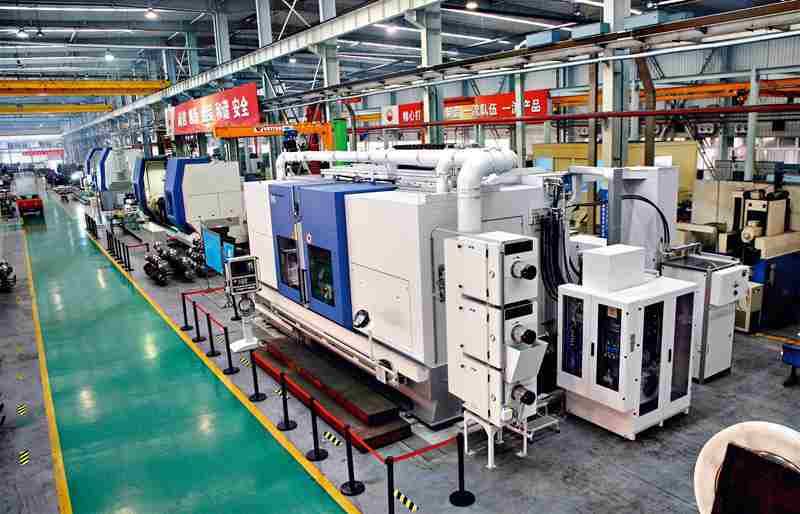

曲轴加工线 (3) Linea de cigueñal.jpg
