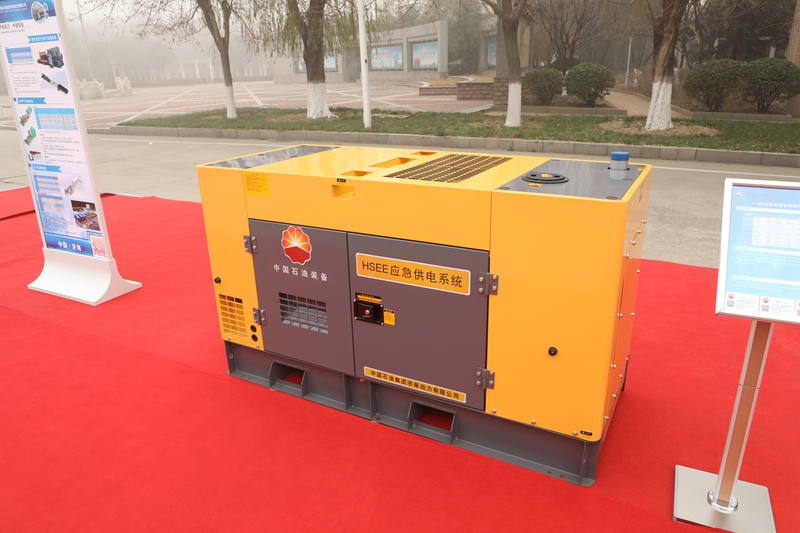

HSEE Diesel Genset
This series of products can meet the demand of power supply capacity of oil (gas) station and oil depot, etc., and the technical indexes of the products have reached the leading level in China. In this application field, the products can replace imported gensets, and the refueling (gas) station and oil depot have the characteristics of three low and four high.
Three low is: low heat consumption, low emissions and low noise
Four high are: high reliability, high safety, high stability and high automation
Technical Characteristic
Model | JC-100GF | JC-200GF | JC-300GF | JC-500GF |
Power | 100kW | 200kW | 300kW | 500kW |
Speed | 1500rpm | |||
Voltage | 400V | |||
Frequency | 50Hz | |||
Power factor | 0.8 | |||
Dimension | 2300x850x1600mm | 2600x850x1700mm | 3000x1000x1700mm | 3400x1200x1950mm |
Weight | 1500kg | 2300kg | 2800kg | 5000kg |
