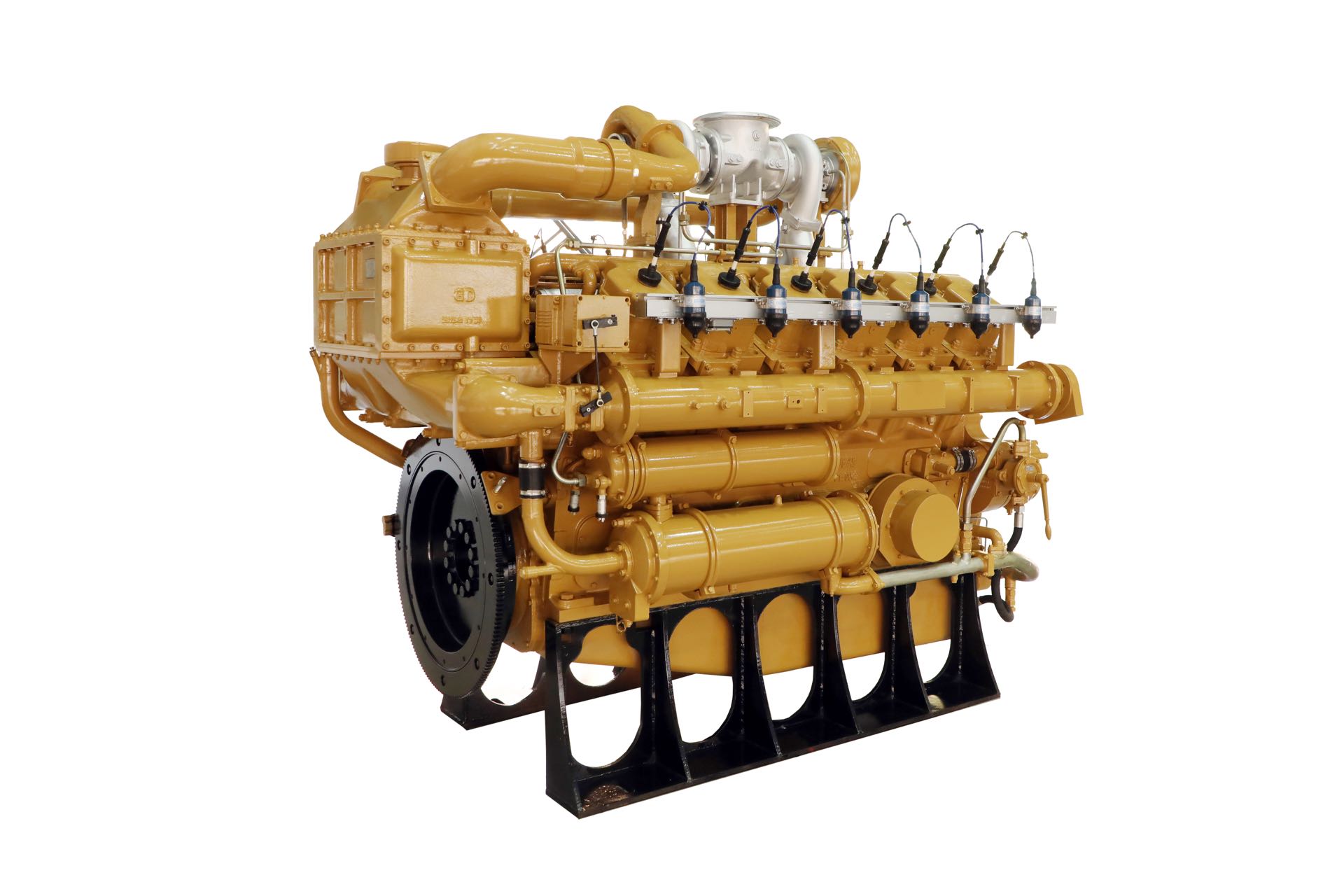

750kW Gas Generator

Product Advantage

In cooperation with WOODWARD Company of the United States, A kind of pre-mixed gas engine with supercharger is developed by utilizing the internationally advanced external gas mixing method, advanced electronic control technology and rarefied combustion control strategy.This series of products has been put on the market nearly a thousand units, cost-effective, with good control and reliability.

Contact Now E-Mail Telephone WhatsApp

Product Details

Technical Characteristic

Production Characteristic

▪100% independent intellectual property rights

▪Low pressure intake and lean burning control technology (adopted to low pressure gas)

▪International main control technology (engine intelligence management system)

▪International advanced compression ration control technology

▪High flow and high pressure intake system adapts to wider concentration changes

▪Advanced management module (automatic synchronization and automatic load distribution)

▪Online Maintenance Technology (More than 2500 hours of continuous trouble-free operation)

▪Digital monitor technology (Full monitoring of engine thermal parameters and unit electrical parameters)

▪Distributed energy system (electric-heat system, electric-heat-cooling system)

▪Different voltage level output (0.4kV/6.3kV/10.5kV)

Genset Model	750GF-T
Alternator model	Brush-less Excitation, Automatic Voltage Regulation
Rated power	750kW
Rated voltage	400V/6300V/10500V/480V/13800V
Rated frequency	50/60Hz
Rated power factor	0.8
Protection class	IP23
Insulation class	H
Engine Model	C12V190ZLT-2
Type	Four strokes, V-type, Turbocharged, Inter-cooling,Spark plug ignition
No. of cylinder	12
Bore	190mm
Stroke	230mm
Total displacement	78.3L
Rated speed	1000r/min
Rated power	830kW
Gas consumption	≤9500kJ/kW.h
Oil consumption	≤0.6g/kW.h
Cooling type	Open type-cooling tower/Closed type-Vertical or Horizontal Radiator
Lubrication method	Pressure and splash lubrication
Starting method	Electric starting
