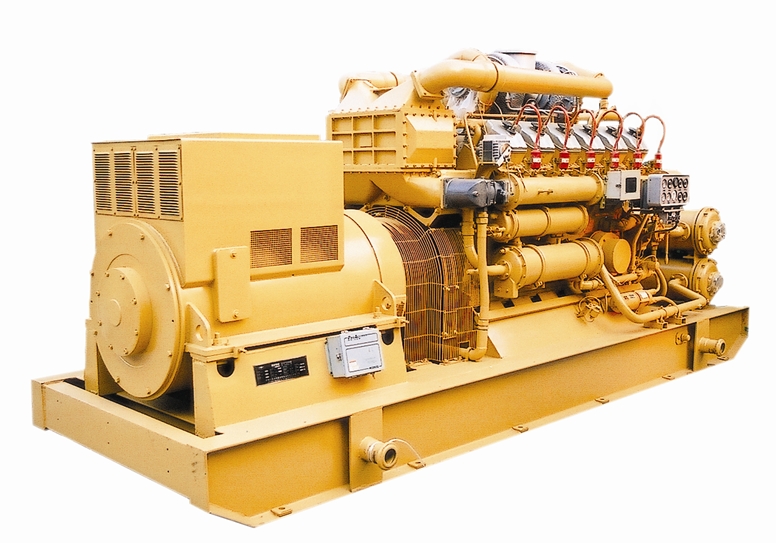

500KW Gas Generator

Product Advantage

According to order No. 17 of the Ministry of Petroleum Industry (82), Jichai started the research and development of high-power turbocharged natural gas engine in 1982.From 1984 to 1988, three prototype tests were carried out in the laboratory and 10,000 hours of industrial tests were carried out in Shengli Oilfield, It was certified by the state as 600kW/1000r/min externally mixed supercharged high-power gas engine on Oct.12,1988. After years of continuous improvement, the products have been serialized and widely used in various oil fields and gas applications, which have brought great economic benefits.

Contact Now E-Mail Telephone WhatsApp

Product Details

Technical Characteristic

Production Characteristic

▪Production code: 127/408

▪Woodward controller

▪Magnetor ignition

▪Ignition plug, high pressure coil

▪Diaphragm mixer

▪Intake-gas pressure:100-400kpa

▪Natural gas、oilfield associated gas

▪Mainly used in natural gas power generation and oil field drilling power fields.

Genset Model	500GF-T
Alternator model	Brush-less Excitation, Automatic Voltage Regulation
Rated power	500kW
Rated voltage	400V/6300V/10500V/480V/13800V
Rated frequency	50/60Hz
Rated power factor	0.8
Protection class	IP23
Insulation class	H
Engine Model	12V190ZDT-2
Type	Four storkes, V-type, inter-cooling, Spark plug ignition, Electric controller, Outer mixed
No. of cylinder	12
Bore	190mm
Stroke	210mm
Total displacement	71.5L
Rated speed	1000r/min
Rated power	552kW
Gas consumption	≤11386kJ/kW.h
Oil consumption	≤0.8g/kW.h
Cooling type	Open type-cooling tower/Closed type-Vertical or Horizontal Radiator
Lubrication method	Pressure and splash lubrication
Starting method	Electric starting
