4000KW Gas Generator

Product Advantage

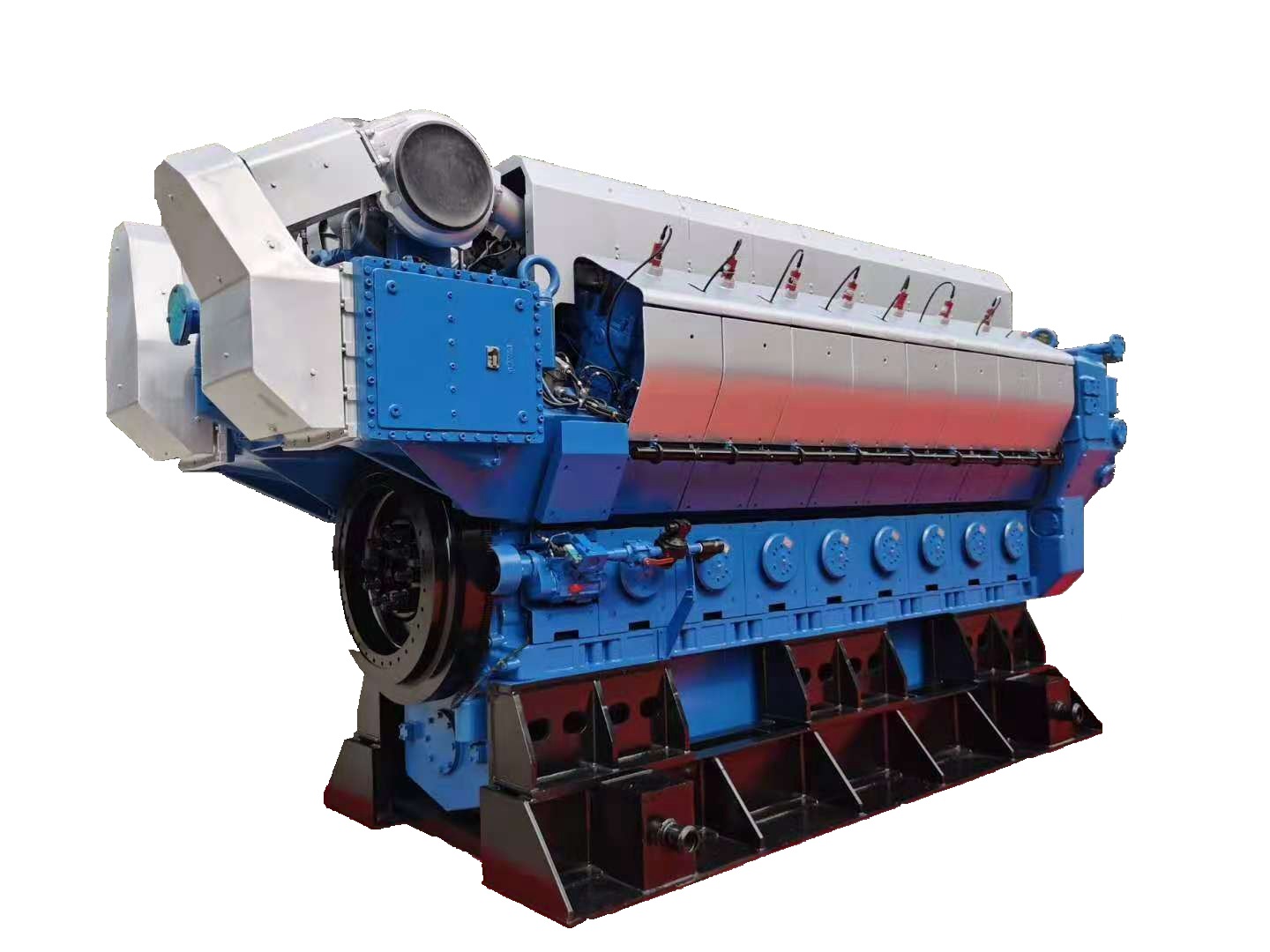

The 2632 series high power natural gas engine have the following characteristic: high pressure, high power, high efficiency, low emission, green, environment protection and other characteristics. The engine’s gas consumption rate is 8500kJ/kw▪h, thermal efficiency is greater than 44%.

Contact Now E-Mail Telephone WhatsApp

Product Details

Technical Characteristic

Production Characteristic

▪λ accurate control ( Jichai: up to 2.3) lean burning;

▪High efficiency (Jichai test level: up to 44%), security (Installation of explosion- proof devices, double-walled gas pipes and oil mist detectors for each system);

▪High pressurization, strong Miller, low emissions;

▪Knock control technology and explosion pressure monitoring (or in-cylinder combustion temperature)

▪Multipoint Electrical Control ( Port Injection); engine management system

▪The optional control of the intake air amount and the intake time of the main combustion chamber and the pre-chamber;

▪Load balance ( According to the cylinder rear temperature control system online correction);

▪High turbocharged, two stage cooling;

▪Self-cleaning filter technology;

▪The filter element adopts the metal filter element and can realize automatic cleaning without replacing the filter element. It can not only guarantee the oil filter requirements of th engine, but also extend the service life, reduce the use cost and maintenance labor intensity.

Genset Model	4000GF10-T	3600GF-T
Alternator model	Brush-less Excitation, Automatic Voltage Regulation
Rated power	4000kW	3600kW
Rated voltage	6300V/10500V/13800V
Rated frequency	50Hz	60Hz
Rated power factor	0.8
Engine Model	16V 26/32
Type	Four strokes, water cooling, turbocharged intercooling, pre-burning zone, multi-point injection, compression ratio control
No. of cylinder	16
Bore	260mm
Stroke	320mm
Single cylinder displacement	17L
Rated speed	1000r/min	900r/min
Rated power	4200kW	3780kW
Gas consumption	≤8600kJ/kW.h
Oil consumption	≤0.3g/kW.h
Cooling type	Open type-cooling tower/Closed type-Horizontal Radiator
Starting method	Air starting
