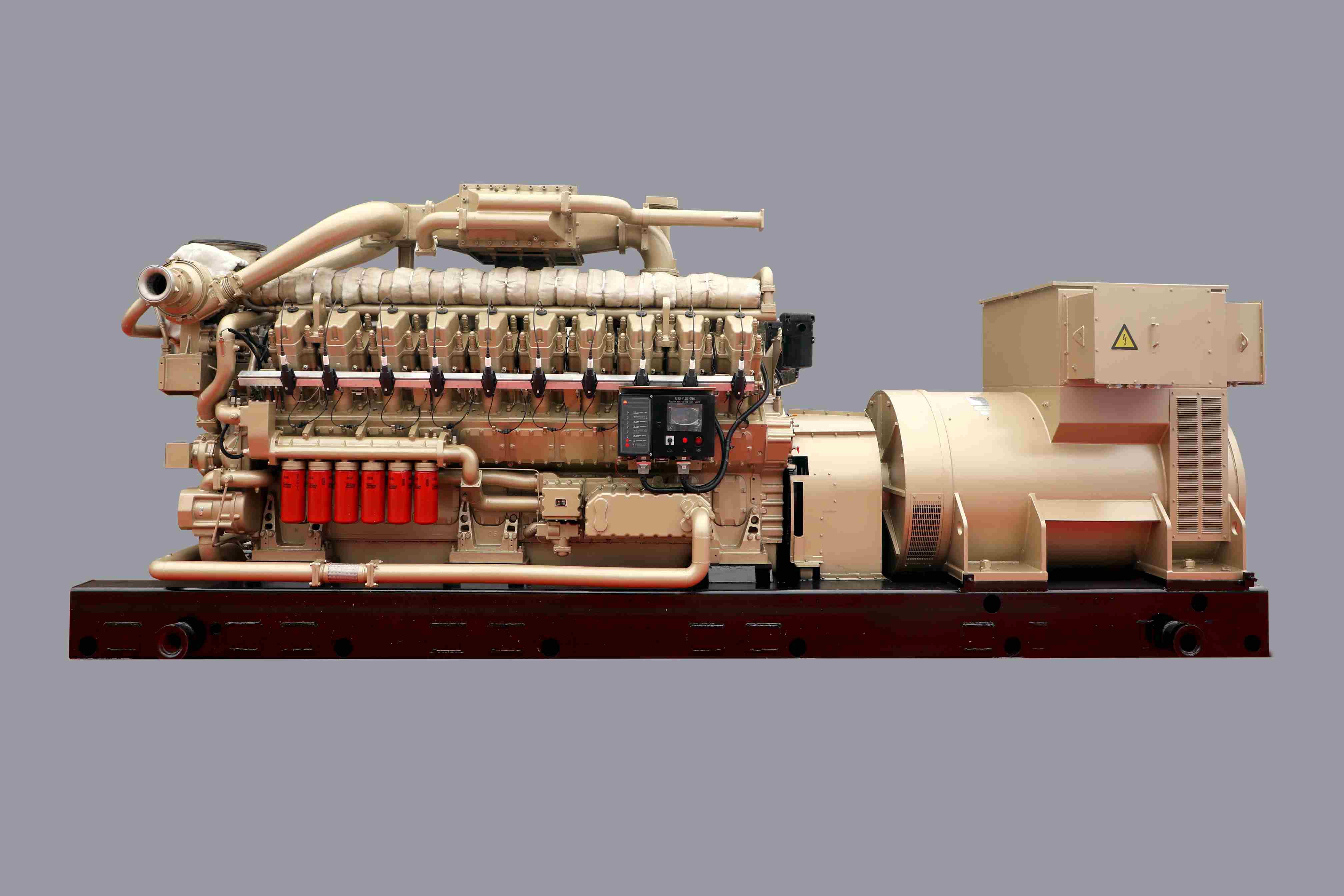

2000KW Gas Generator

Product Advantage

The long-stroke 20V190 gas engine has a single power range of 1000kw-2000kw, and its gas type can take into account natural gas, methane gas and biogas. The market demand is promising.

Price

CN¥3,079,680.00

Contact Now E-Mail Telephone WhatsApp

Product Details

Technical Characteristic

Production Characteristic

▪Turbocharger pre-mixing technology, where gas and air are sucked in at the same time in the compressor, to be suitable for low pressure gas,

▪The rarefied combustion technology uses WOODWARD's E6 control system to accurately control the air-fuel ratio.Reach the high - altitude combustion ratio, achieve rarefied combustion

▪The single point injection and air - fuel ratio closed - loop control technology can realize the closed - loop control of air - fuel ratio (in).The engine can adjust the amount of air and natural gas according to the requirements of different working conditions and different speeds, so that the engine can run in the best state.

▪Efficient and reliable design of the intake and exhaust system, the use of advanced high pressure ratio, large flow supercharger, increase the flow area of the intake pipeline, improve the intake efficiency

▪High efficiency, low resistance and plate type oil cooler to improve cooling efficiency, increase the cooling area of air and lubricating oil.

Genset Model	2000GF10-T	2200GF-T
Alternator model	Brush-less Excitation, Automatic Voltage Regulation
Rated power	2000kW	2200kW
Rated voltage	400V/6300V/10500V/480V/13800V
Rated frequency	50Hz/60Hz	50Hz/60Hz
Rated power factor	0.8
Protection class	IP23
Insulation class	H
Engine Model	L20V190ZLT-2	L20V200ZLT-2
Type	Four strokes, V-type, Turbocharged, Inter-cooling,Spark plug ignition
No. of cylinder	20	20
Bore	190mm	200mm
Stroke	255mm	255mm
Total displacement	144.6L	160.2L
Rated speed	1000r/min,1200r/min	1000r/min,1200r/min
Rated power	2200kW	2400kW
Gas consumption	≤8600kJ/kW.h
Oil consumption	≤0.3g/kW.h
Cooling type	Open type-cooling tower/Closed type-Vertical or Horizontal Radiator
Lubrication method	Pressure and splash lubrication
Starting method	Electric starting/Air starting
