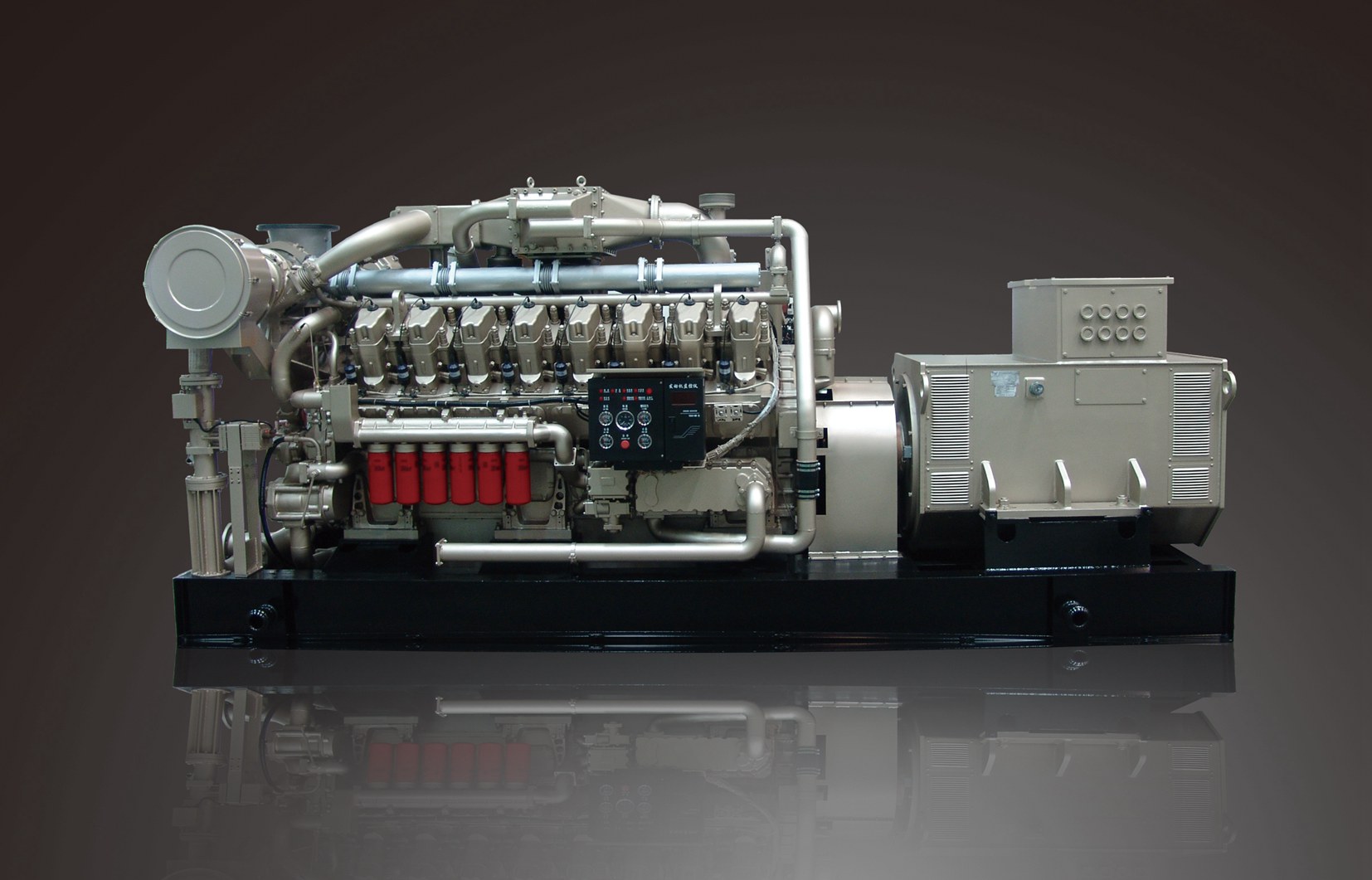

1100kW Gas Generator

Product Advantage

Series 6000 gas engine is a high-power gas engine,now can be up to 1600 kw. It adopts the most advanced technology of air-fuel ratio control, engine performance, fuel economy, reliability and security were greatly improved, and its main performance index has reached the international advanced level, can form a complete set of gas generator and compressor sets, meet the needs of urban and well-site power supply and compressor markets.

Contact Now E-Mail Telephone WhatsApp

Product Details

Technical Characteristic

Production Characteristic

▪100% independent intellectual property rights

▪ International mainstream Control Technology ( Engine Intelligent Management System)）

▪International advanced air-fuel ratio control technology (TECJET air-fuel ratio automatic regulation)

▪Large flow and high pressure intake system can adapt to a wide range of concentration changes

▪Low pressure air intake and lean combustion control technology (for low pressure gas, better emission)

▪Advanced genset management module (automatic synchronization and automatic load distribution)

▪Online maintenance technology (more than 2500 hours of continuous trouble-free operation time)

▪Digital monitoring technology (full monitoring of engine thermal parameters and genset electrical parameters)

Genset Model	1100GF-T	1500GF-T
Alternator model	Brush-less Excitation, Automatic Voltage Regulation
Rated power	1100kW	1500kW
Rated voltage	400V/6300V/10500V/480V/13800V
Rated frequency	50Hz	60Hz
Rated power factor	0.8
Protection class	IP23
Insulation class	H
Engine Model	H16V190ZLT-2	H16V190ZLT-1
Type	Four strokes, V-type, Turbocharged, Inter-cooling,Spark plug ignition
No. of cylinder	16
Bore	190mm
Stroke	215mm
Total displacement	97.53L
Rated speed	1000r/min	1200r/min
Rated power	1200kW	1600kW
Gas consumption	≤9200kJ/kW.h
Oil consumption	≤0.6g/kW.h
Cooling type	Open type-cooling tower/Closed type-Vertical or Horizontal Radiator
Lubrication method	Pressure and splash lubrication
Starting method	Electric starting
