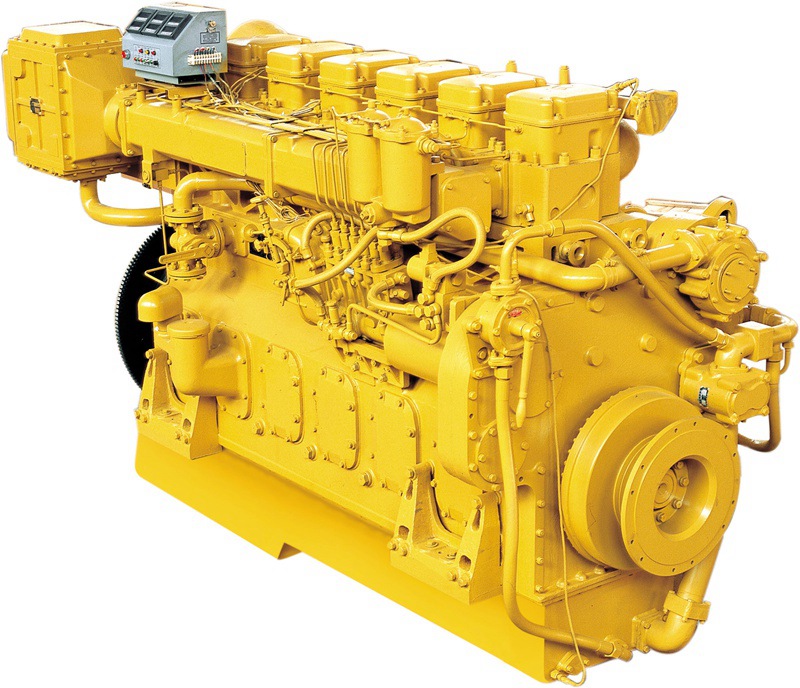

G6190 Series Marine Diesel Engine(380-540kw)

The products cover a wide range of power, can meet the needs of customers in different power segments, products have passed the CCS certification.

Contact Now E-Mail Telephone WhatsApp

Product Details

Technical Characteristic

Engine Model	G6190ZLC-2	G6190ZLC-1		G6190ZLC-3		G6190ZLC
Type	Four strokes, In-line, Turbocharged and inter cooling, Water-cooled,Direct injection
Rated power	380kw/517hp		450kw/612hp		480kw/653hp		540kw/735hp
Speed	1000rpm		1200rpm		1300rpm		1450rpm
Bore	190mm
Stroke	210mm
Total displacement	35.73L
Compression ratio	14.5:1
Minimal stable speed	400kw		540kw		585kw		650kw
Fuel consumption	≤196g/kW.h
Oil consumption	≤1.0g/kW.h
Starting method	Electric starting or air starting
Outline size(LxWxH)	2995x1133x1754mm
Net weight	3960kg
