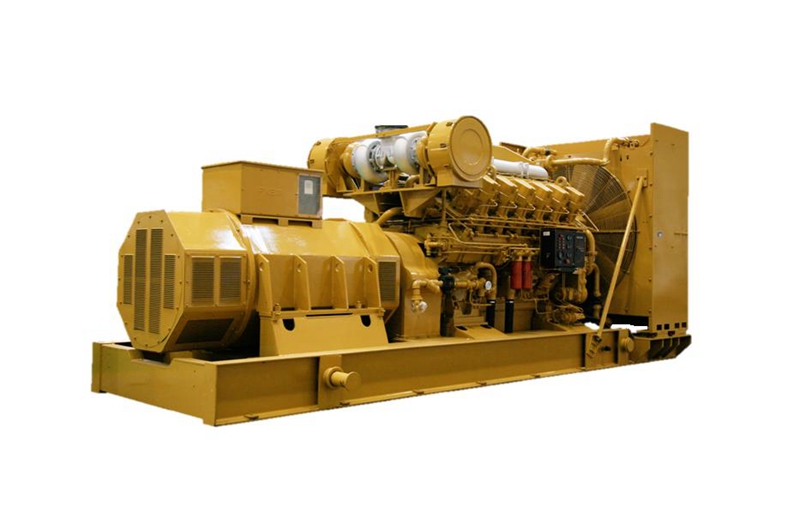

Diesel Genset 3000 Series (800-1200kW)
Product Advantage
Series 3000 diesel engine is developed by absorbing the advanced structure and technology of foreign diesel engines Its dynamic, economic indicators have been greatly improved, the main performance indicators have reached or close to today's international advanced level. 3000 series diesel engine can meet the demand for power of mechanical drilling rigs and electric drilling rigs of 4000 to 7000 meters, and can also be used in the field of power generation.
Technical Characteristic
Genset model | 800GF5 | 1000GF2 | 1100GFZ | 1200GF |
Engine model | A12V190ZL-2 | A12V190ZLD1 | A12V190ZLD3 | BH12V190ZLD |
Alternator model | IFC series | |||
Power | 800kW | 1000kW | 1100kW | 1200kW |
Speed | 1000r/min | 1500r/min | 1500r/min | 1500r/min |
Voltage | 400/6300/10500 | |||
Frequency | 50Hz | |||
Power Factor | 0.8 | |||
Dimension | 6410x2252x2739mm | 6250x2250x2739mm | 6381x2200x2636mm | |
Weight | 17200kg | 19300kg | 19300kg | 17200kg |
Our Product
Our Company

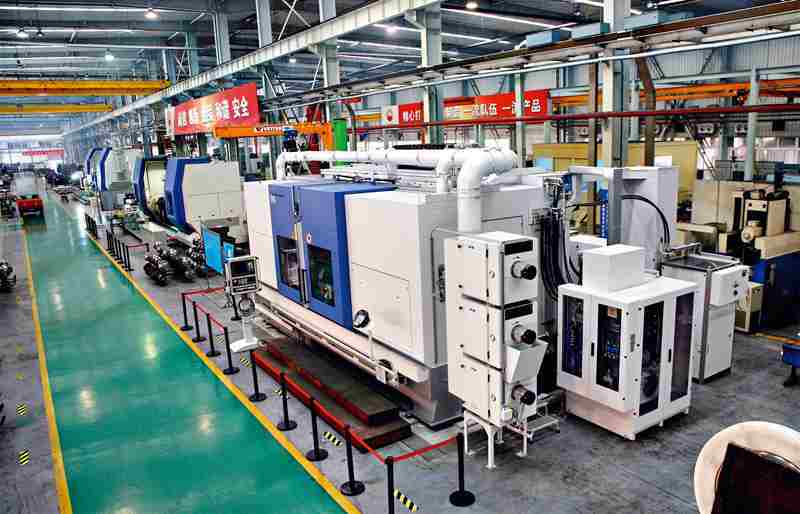

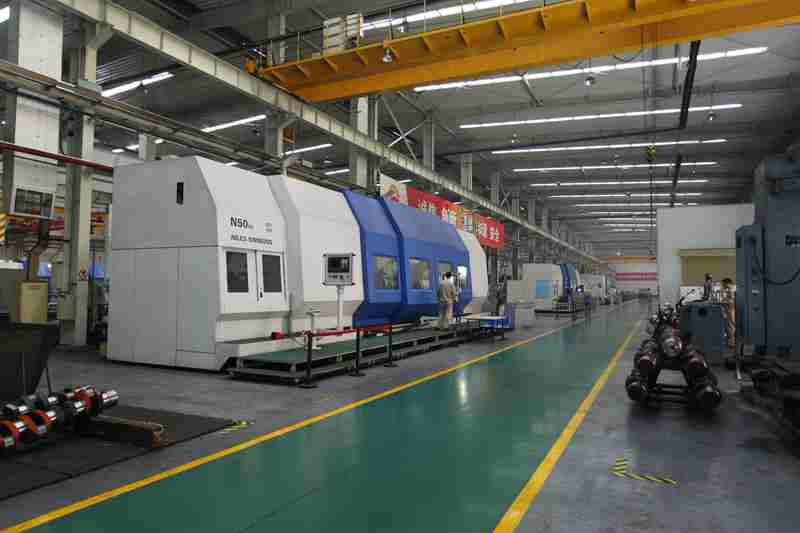

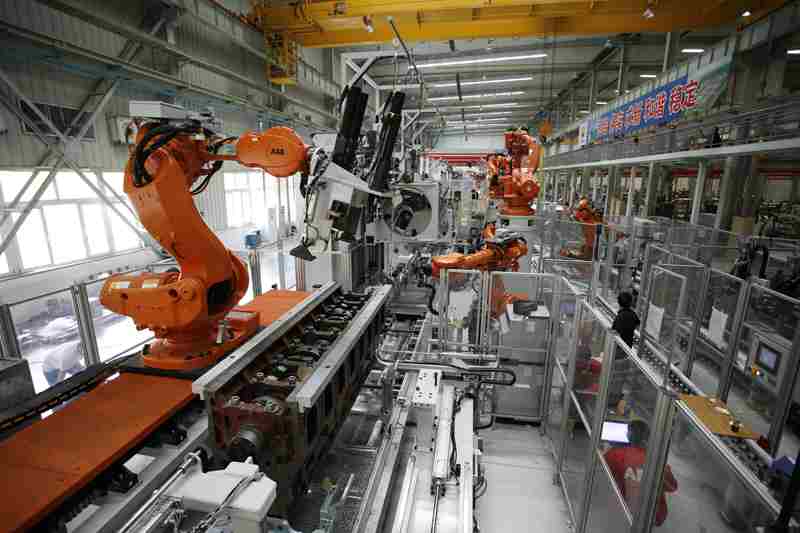

Our Factory
