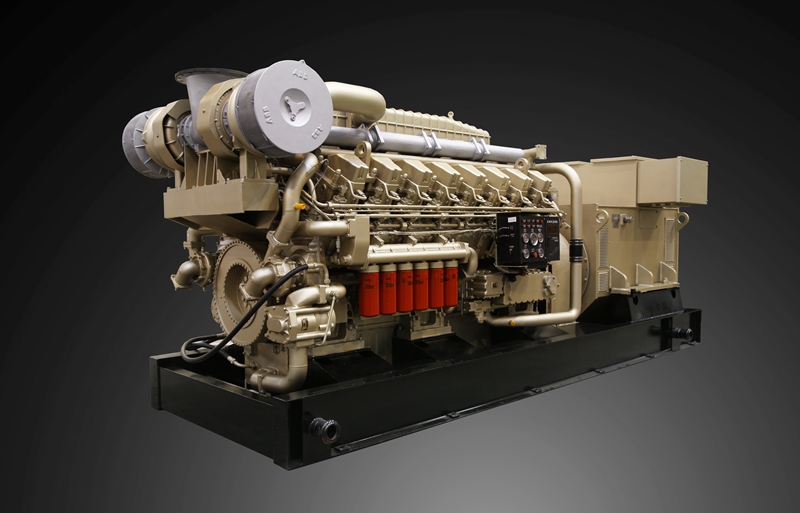

2000KW Emergency Diesel Generator
Advantage
It adopts advanced and technologically mature spare parts in the international combustion engine industry, this not only extend the power of original 190 series diesel engine but also improve the average effective pressure, reduces fuel consumption and improve reliability and safety.
6000 series land diesel engines are widely used in oil drilling, diesel power station, offshore drilling platforms, locomotives, main auxiliary ships and other power equipment.
Production Characteristic
Genset Model | 2000GFZ2 |
Alternator model | Brush-less Excitation, Automatic Voltage Regulation |
Rated power | 2000kW |
Rated voltage | 400V/6300V/10500V/480V/13800V |
Rated frequency | 50Hz/60Hz |
Rated power factor | 0.8 |
Protection class | IP23 |
Insulation class | H |
Engine Model | AH16V190ZLD |
Type | Four strokes, V-type, Turbocharged, Inter-cooling, direct injection combustion chamber |
No. of cylinder | 16 |
Bore | 190mm |
Stroke | 215mm |
Total displacement | 97.53L |
Rated speed | 1500r/min |
Fuel consumption | ≤202g/kW.h |
Oil consumption | ≤0.6g/kW.h |
Cooling type | Forced water cooling |
Lubrication method | Pressure and splash lubrication |
Starting method | Electric starting/Air starting |
Our Company

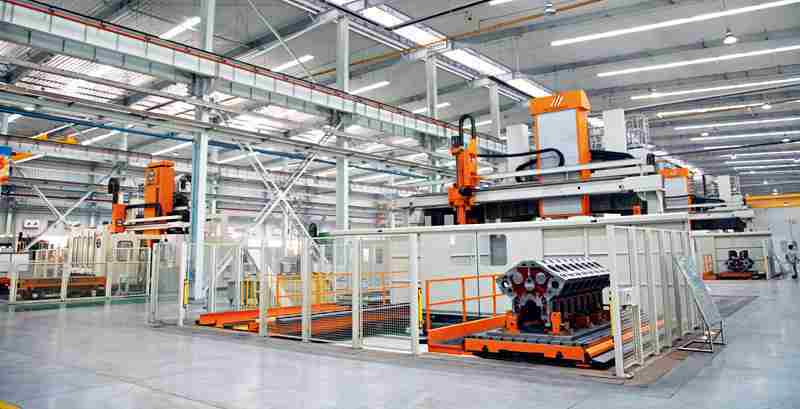

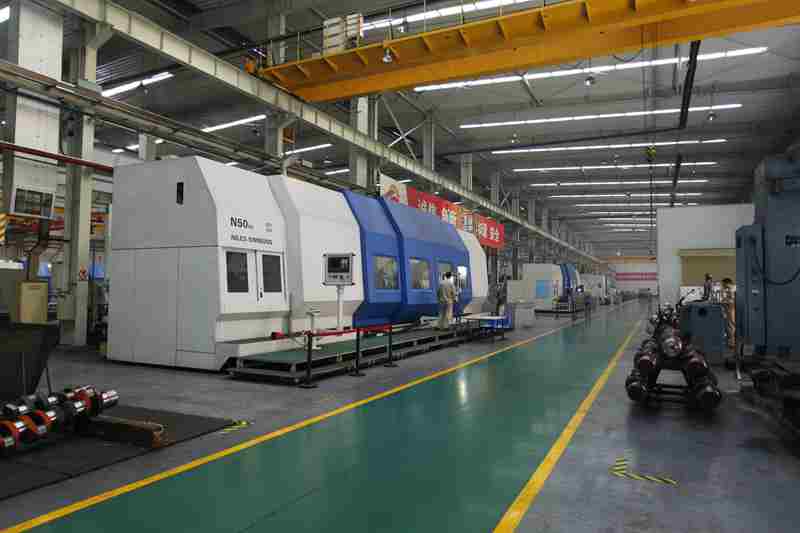

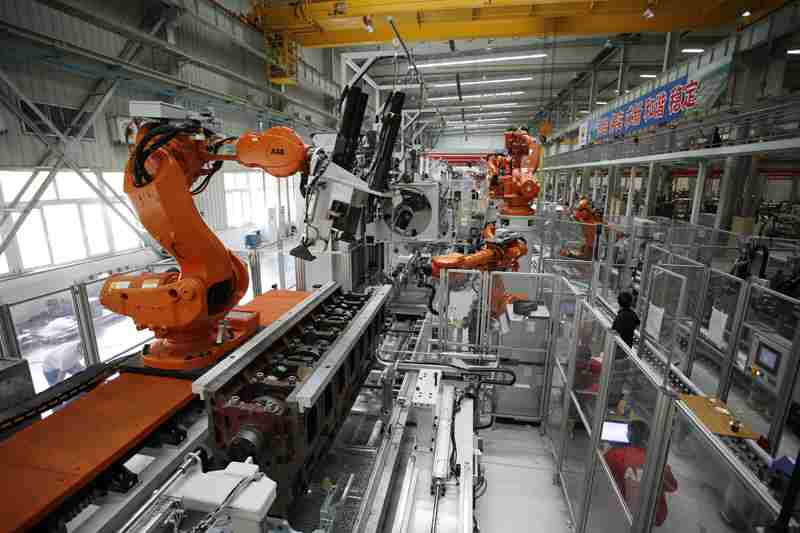

Our Factory
