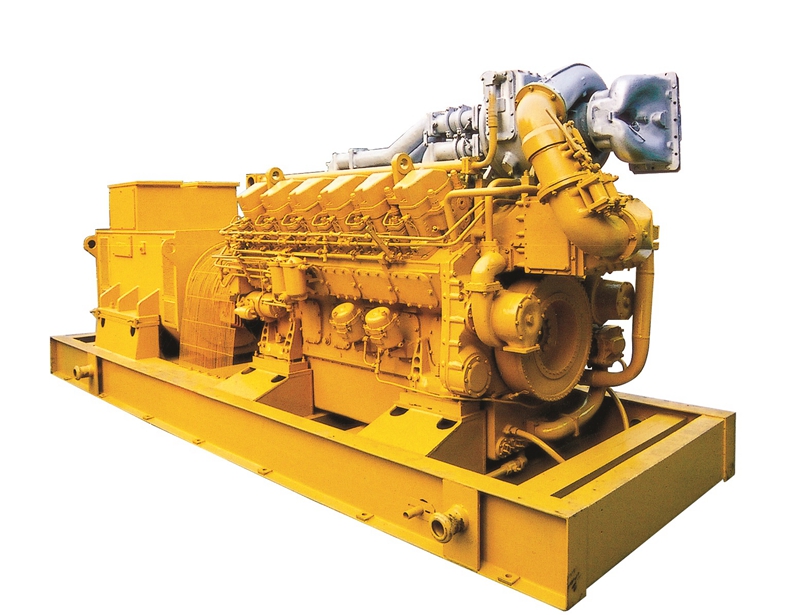

1500KW Emergency Diesel Generator
Product Advantage
The 6000 series diesel engine has been designed and developed the latest internal combustion engine development methods corporate by Jichai and Austrian AVL and domestic famous universities and research institutes,through simulation calculation and optimized of engine combustion process, crankshaft torsion, turbocharger matching, intake and exhaust systems via computer-aided design, simulation calculation, finite element analysis, etc. It adopts advanced and technologically mature spare parts in the international combustion engine industry, this not only extend the power of original 190 series diesel engine but also improve the average effective pressure, reduces fuel consumption and improve reliability and safety.
Production Characteristic
Genset Model | 1500GFZ9 |
Alternator model | Brush-less Excitation, Automatic Voltage Regulation |
Rated power | 1500kW |
Rated voltage | 400V/6300V/10500V/480V/13800V |
Rated frequency | 50Hz/60Hz |
Rated power factor | 0.8 |
Protection class | IP23 |
Insulation class | H |
Engine Model | H12V190ZLD |
Type | Four strokes, V-type, Turbocharged, Inter-cooling, direct injection combustion chamber |
No. of cylinder | 12 |
Bore | 190mm |
Stroke | 215mm |
Total displacement | 73.15L |
Rated speed | 1500r/min |
Rated power | 1560kW |
Fuel consumption | ≤202g/kW.h |
Oil consumption | ≤0.6g/kW.h |
Cooling type | Forced water cooling |
Lubrication method | Pressure and splash lubrication |
Starting method | Electric starting/Air starting |
Our Company

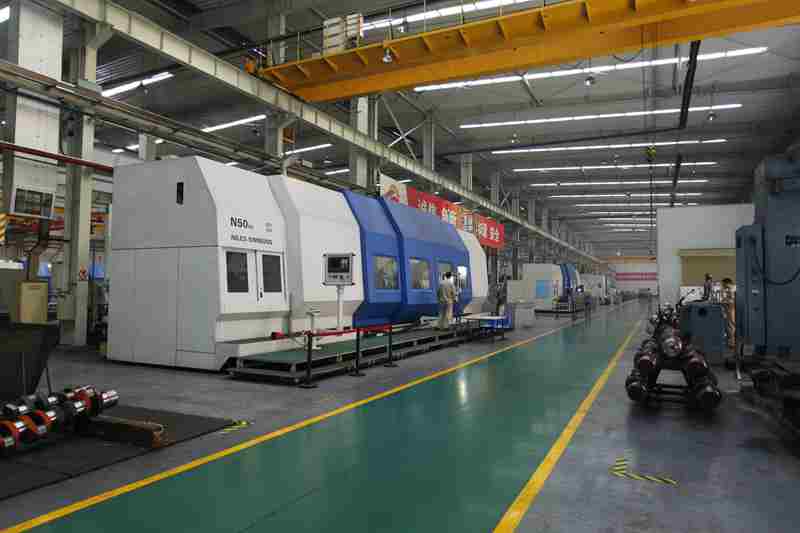

Our Factory
