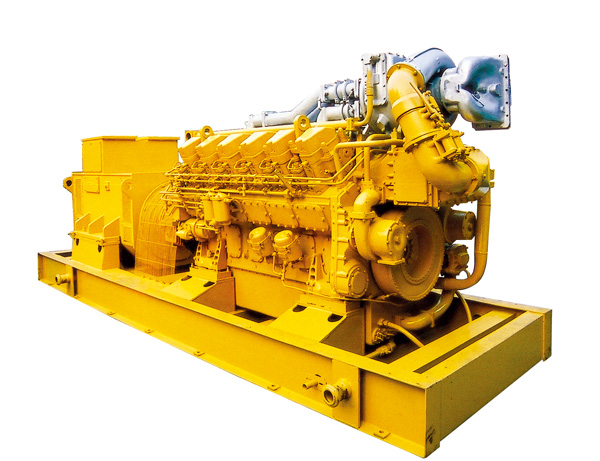

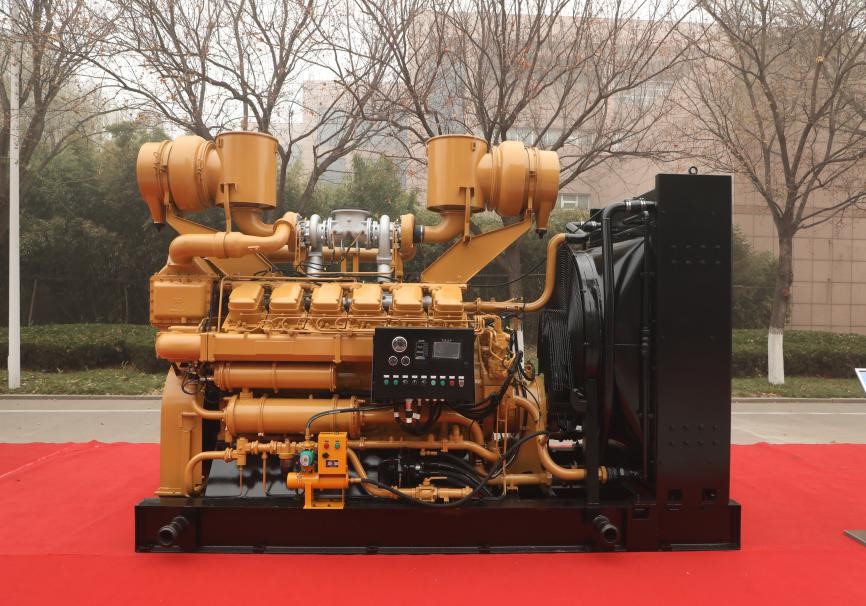

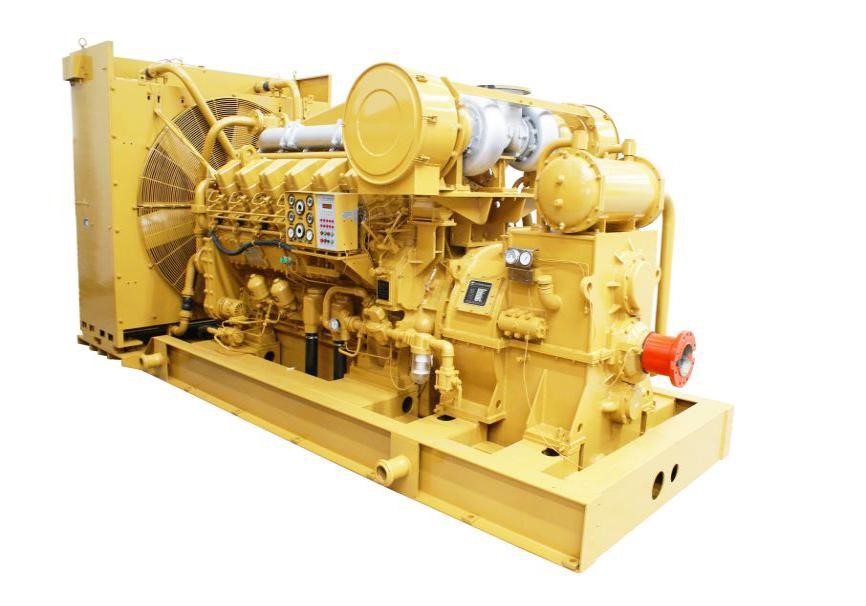

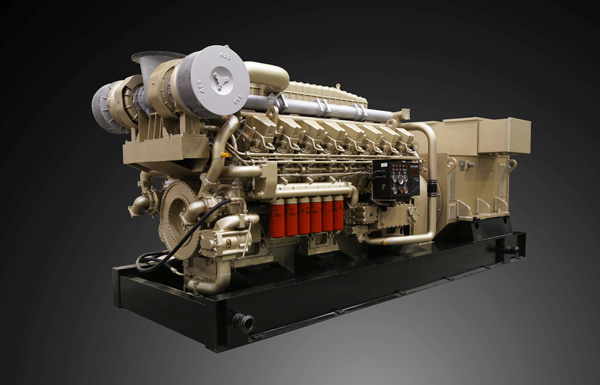

The 6000 Series Diesel Engine
6000 series of land Diesel Engine is ji chai with Austria AVL company as well as the domestic well-known colleges and universities, research cooperation, using the latest internal combustion engine development means, through computer-aided design, simulation calculation, finite element analysis of engine combustion working process, crankshaft torsion vibration, supercharger matching, inlet and exhaust system developed on the basis of design and optimization. Using the international high power internal combustion engine industry advanced technology, mature parts products, so that the machine in the expansion of the original 190 series diesel engine power at the same time, improve the average effective pressure, reduce fuel consumption emissions and improve the reliability, safety has made great progress.
6000 series of land Diesel Engine is ji chai with Austria AVL company as well as the domestic well-known colleges and universities, research cooperation, using the latest internal combustion engine development means, through computer-aided design, simulation calculation, finite element analysis of engine combustion working process, crankshaft torsion vibration, supercharger matching, inlet and exhaust system developed on the basis of design and optimization. Using the international high power internal combustion engine industry advanced technology, mature parts products, so that the machine in the expansion of the original 190 series diesel engine power at the same time, improve the average effective pressure, reduce fuel consumption emissions and improve the reliability, safety has made great progress.
1. Supporting machine of the 6000 series diesel engine
name | model | Oil injection system | mode of speed regulation | Number and arrangement of cylinders | cylinder bore,mm | piston stroke,mm | power rating,kW | Rated rotation speed, at r/min | Total piston displacement, L | Fuel consumption rate, g / kW.h | Oil consumption rate, kW.h | oil sump capacity L | outline dimension mm | weight kg |
building machine | H12V190PZL | monoblock pump | Hydraulic or electrohydraulic speed governor | 12 Cylinder, Type V | 190 | 215 | 1506 | 1500 | 73.15 | ≤200 | ≤1.0 | 365 | 5417×3145×3174 | 13700 |
H12V190PZL-1 | 1210 | 1200 | 73.15 | ≤200 | ≤1.0 | 365 | ||||||||
H12V190PZL-2 | 990 | 1000 | 73.15 | ≤200 | ≤1.0 | 365 |
2. Coupler unit of the 6000 series diesel engine
name | Unit model | power rating kw | speed r/min | engine type | Coupler / torque converter model number | center height |
Conjugate unit | CO2200/40 | 2200 | 1500 | H16V190PZL | YOTFJ875 | 760 |
Our Company

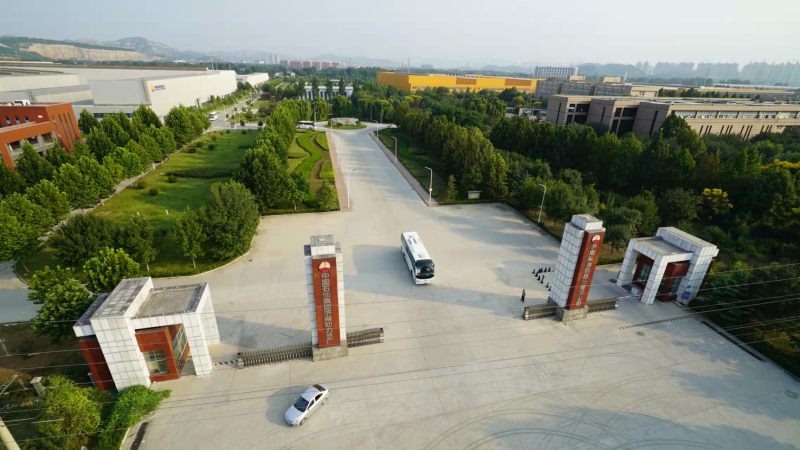

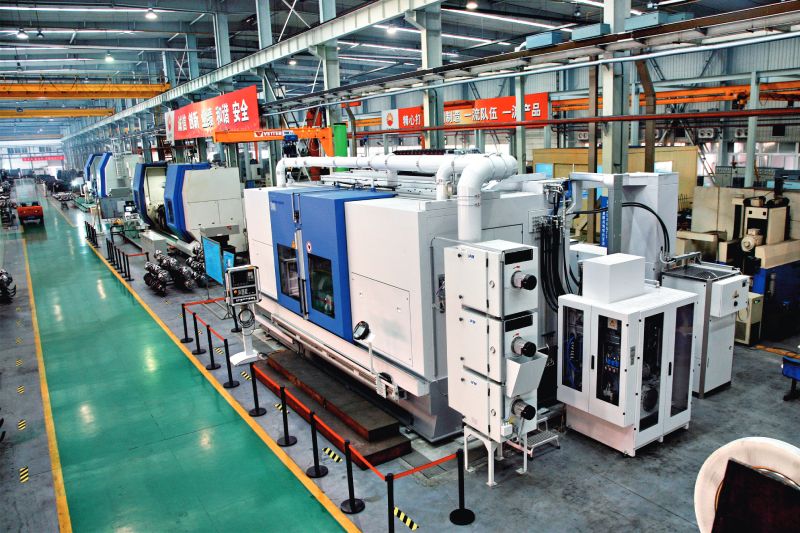

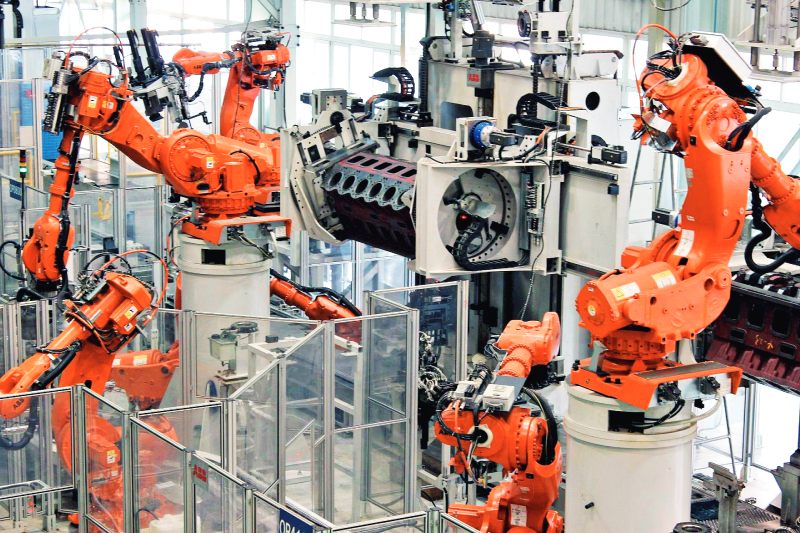

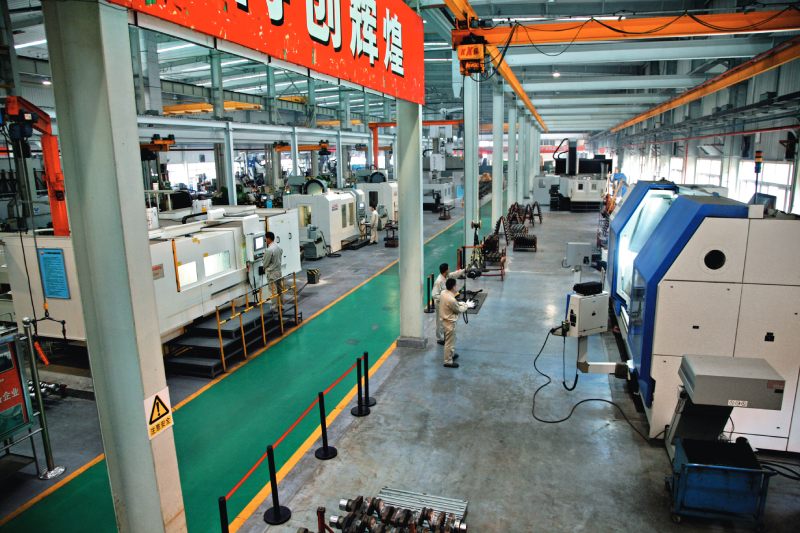

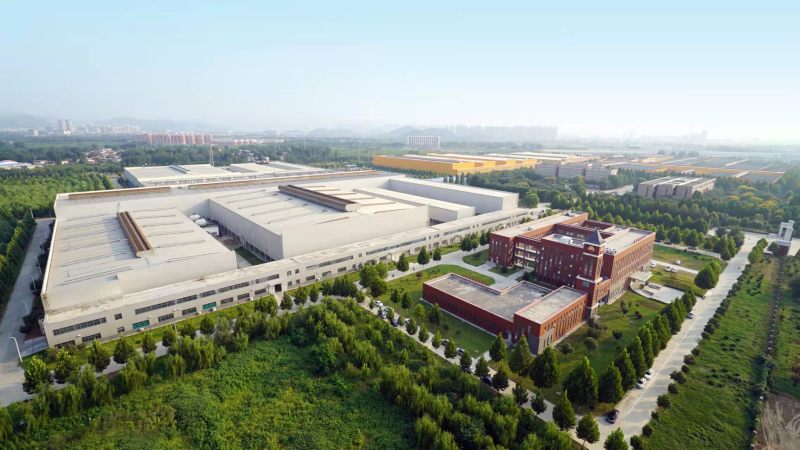

Our Factory

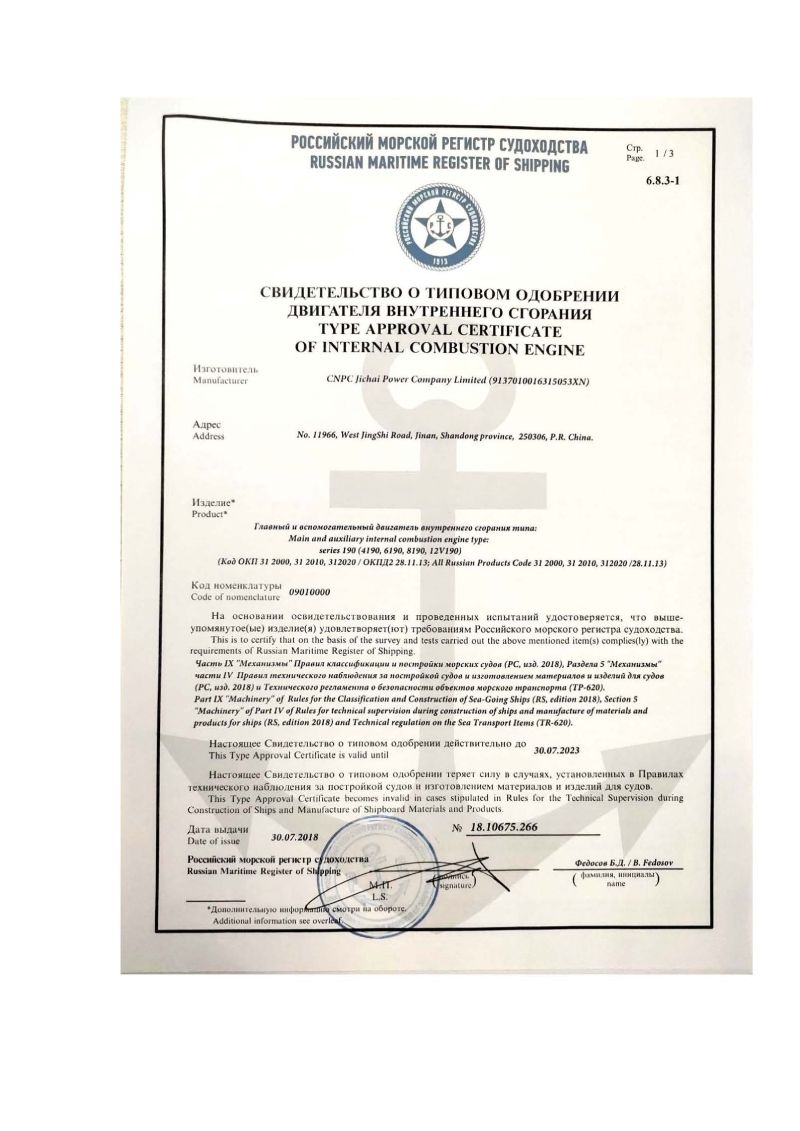

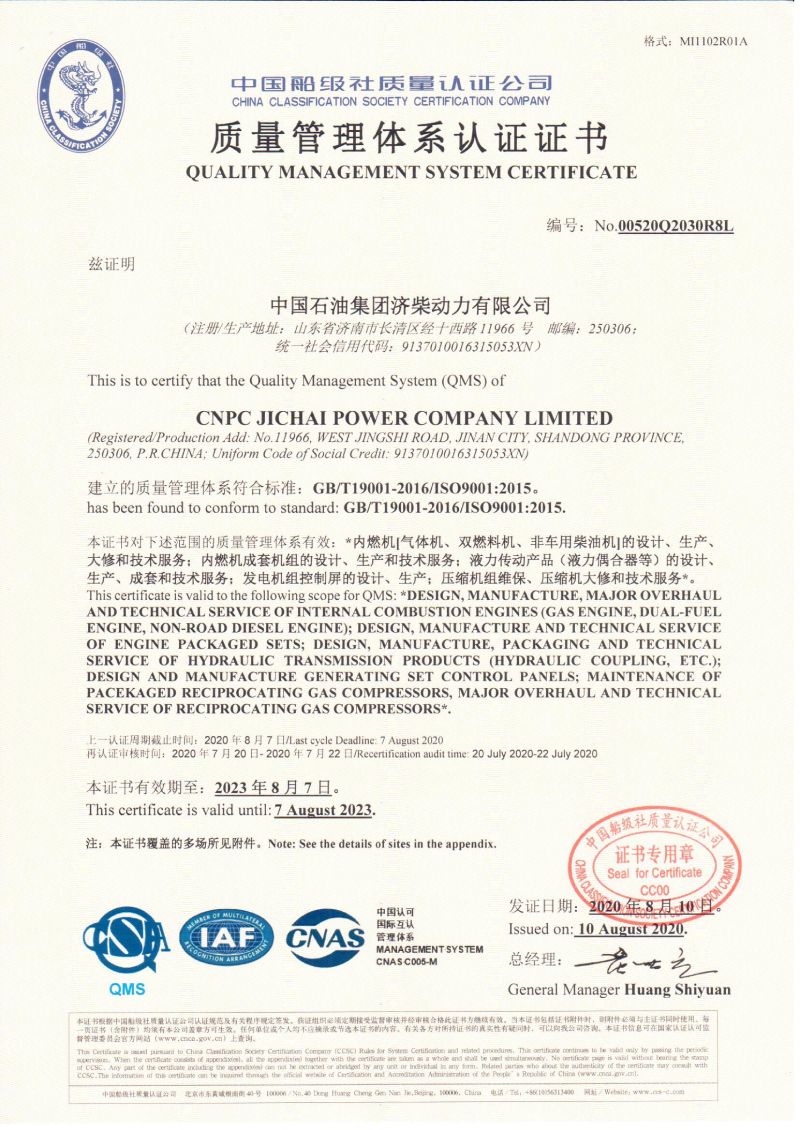

Certificates
