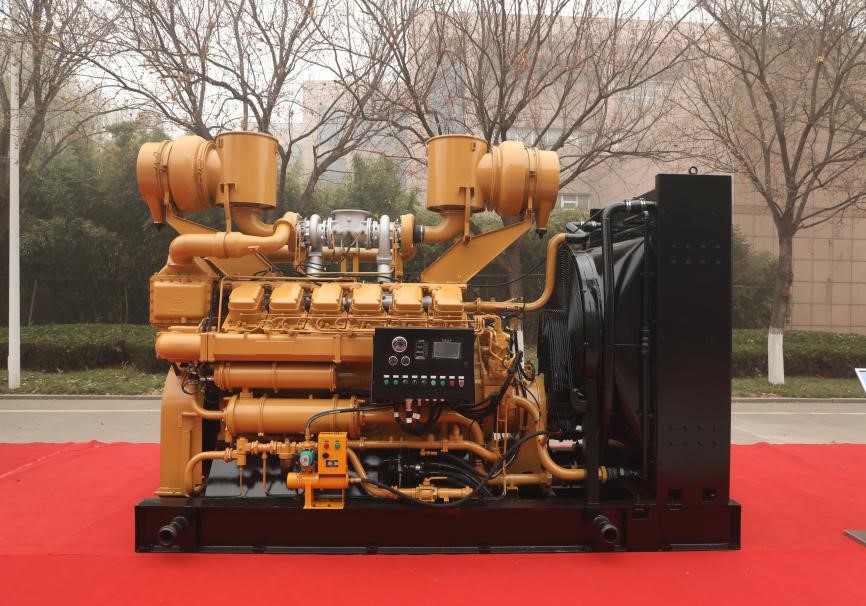

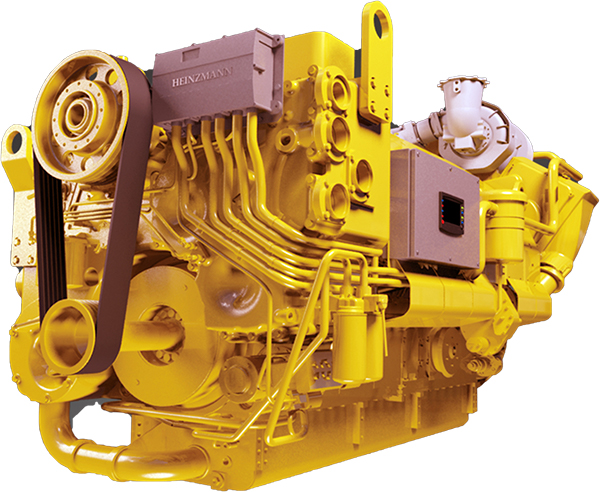

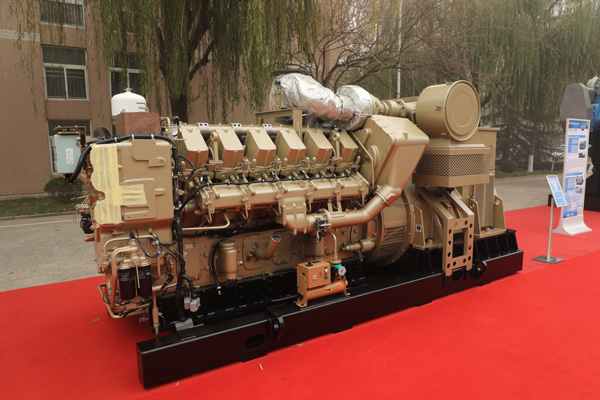

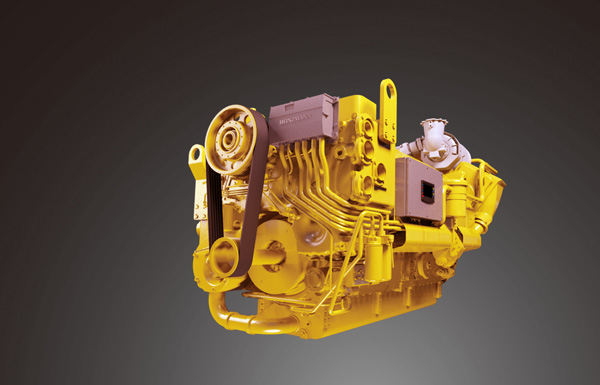

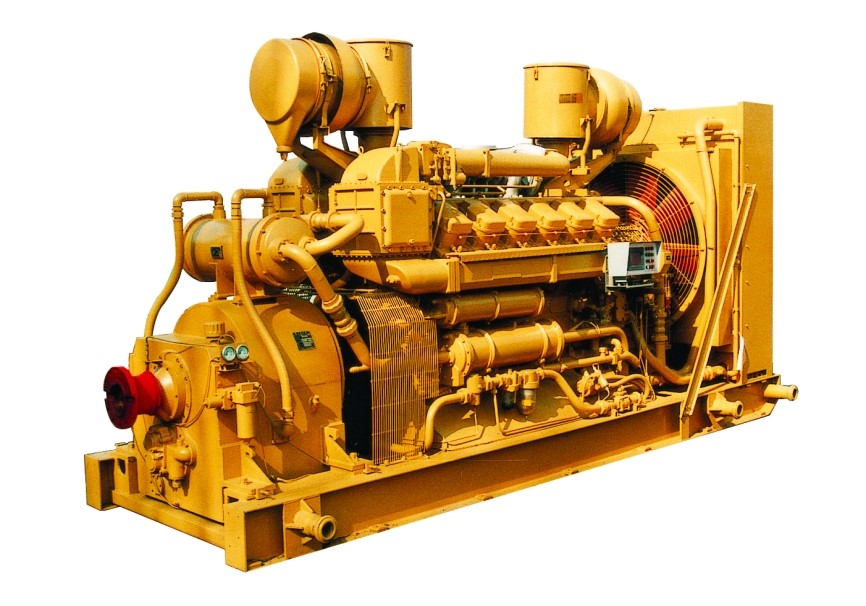

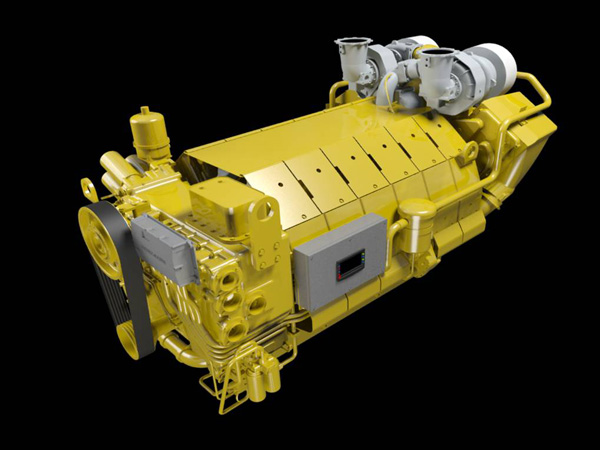

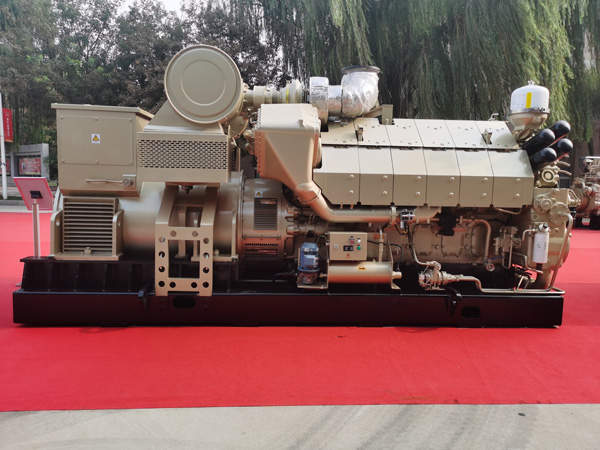

The 175 Series Diesel Engine
The 12V175 Diesel Engine has high pressurization and low energy consumption. The characteristics of high reliability, long life, through the adoption of electronic control, high pressure common rail, miller cycle, exhaust after processing, efficient supercharger, dynamic, economy, reliability, emissions index has reached the international advanced level: diesel average effective pressure of 2.0MPa, the first overhaul of 35000 hours, bare machine emissions meet GB20891 II.
The 12V175 Diesel Engine has high pressurization and low energy consumption. The characteristics of high reliability, long life, through the adoption of electronic control, high pressure common rail, miller cycle, exhaust after processing, efficient supercharger, dynamic, economy, reliability, emissions index has reached the international advanced level: diesel average effective pressure of 2.0MPa, the first overhaul of 35000 hours, bare machine emissions meet GB20891 II.
1. Supporting machine of the 175 series diesel engine
name | model | Oil injection system | mode of speed regulation | Number and arrangement of cylinders | cylinder bore,mm | piston stroke,mm | power rating,kW | Rated rotation speed, at r/min | Total piston displacement, L | Fuel consumption rate, g / kW.h | Oil consumption rate, g / kW.h | oil sump capacity L | outline dimension mm | weight kg |
building machine | 12V175PZL-1/0 | ECU electrically controlled single unit pump | Electric tone | 12 Cylinder, Type V | 175 | 190 | 1097 | 1200 | 54.8 | ≤200 | ≤0.6 | 278 | 3048×1848×2070 | 10300 |
2. Coupler unit of the 175 series diesel engine
name | Unit model | power rating kw | speed r/min | engine type | coupler / torque converter model number | center height |
Conjugate unit | 12V175PZL-1/0 | 1097 | 1200 | 12V175PZL-1 | YOZJ750 | 930 |
