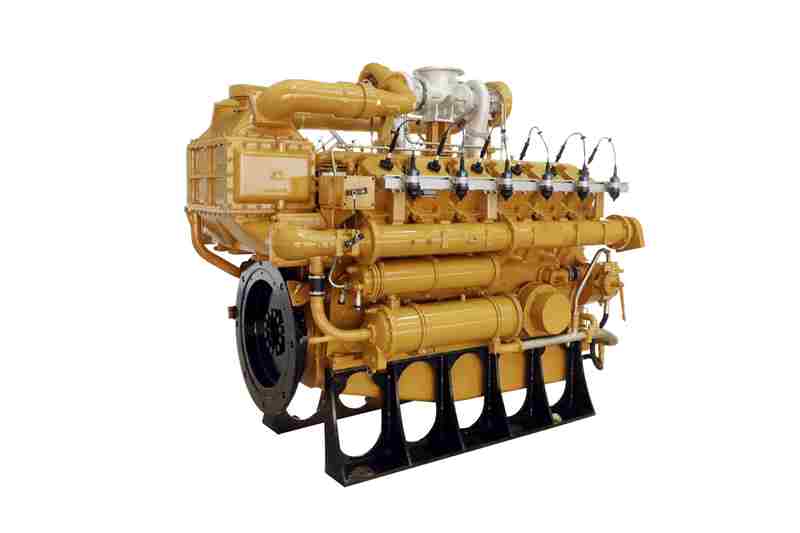

700KW Biogas Generator

Advantage

700KW biogas genset Jichai cooperated with WOODWARD Company, adopting an advanced international gas-fired external mixing method, using advanced electronic control technology and lean-burn control strategy to develop a gas engine with gas and air mixed before turbocharger, which is cost-effective and has good Controllability and reliability.

Contact Now E-Mail Telephone WhatsApp

Product Details

Production Characteristic

▪Production:C12V190

▪100% independent intellectual property;

▪International mainstream control technology( engine intelligent management system);

▪International advanced air-gas ratio control technology(TECJECT air-fuel ratio automatic adjustment);

▪High flow and high pressure intake system adapts to wide variations in concentration (30% to 60% methane concentration);

▪Low pressure air-intake and lean combustion control technology ( adopt to low pressure gas, better emissions);

▪Advanced management module (automatic synchronization and automatic load distribution);

▪Online Maintenance Technology (More than 2500 hours of continuous trouble-free operation);

▪Digital Monitoring Technology (Full monitoring of engine thermal parameters and unit electrical parameters);

▪Distributed Energy Systems( Electric-Thermal, Electric-Hot-Cool)

Genset Model	700GF2-Z
Alternator model	Brush-less Excitation, Automatic Voltage Regulation
Rated power	700kW
Rated voltage	400V/6300V/10500V/480V/13800V
Rated frequenc y	50/60Hz
Rated power factor	0.8
Protection class	IP23
Insulation class	H
Engine Model	C12V190ZLZ-2
Type	Four strokes, V-type, Turbocharged, Inter-cooling,Spark plug ignition
No. of cylinder	12
Bore	190mm
Stroke	230mm
Total displacement	78.3L
Rated speed	1000r/min
Rated power	750kW
Gas consumption	≤9500kJ/kW.h
Oil consumption	≤0.6g/kW.h
Cooling type	Open type-cooling tower/Closed type-Vertical or Horizontal Radiator
Lubrication method	Pressure and splash lubrication
Starting method	Electric starting
