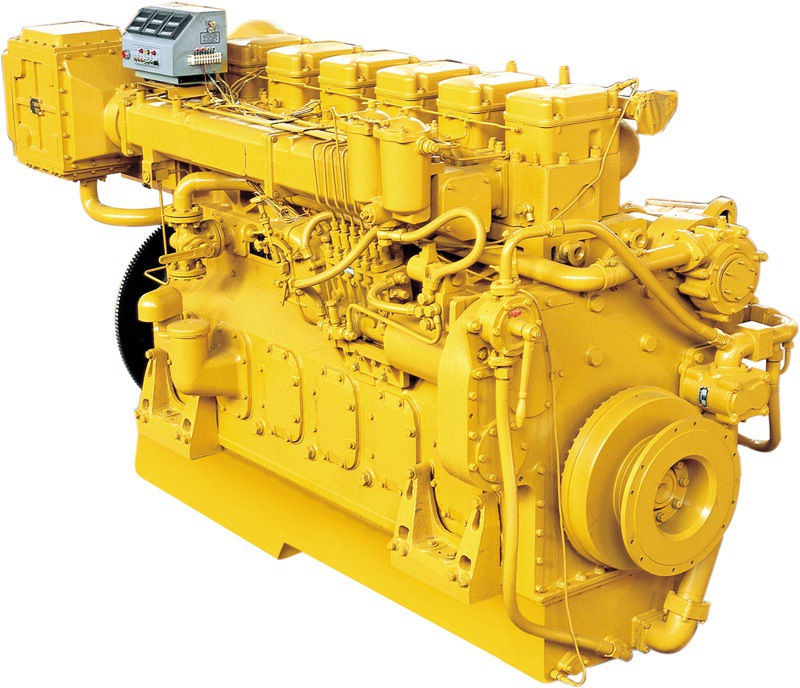

B6190 Series Diesel Marine Engine(330-450kw)
The products cover a wide range of power, can meet the needs of customers in different power segments, products have passed the CCS certification.
Product Details
Technical Characteristic
Engine Model | B6190ZLC-2 | B6190ZLC-1 | B6190ZLC-3 | B6190ZLC | |||
Type | Four strokes, In-line, Turbocharged and inter cooling, Water-cooled,Direct injection | ||||||
Rated power | 330kw/450hp | 400kw/540hp | 400kw/540hp | 450kw/610hp | |||
Speed | 1000rpm | 1200rpm | 1300rpm | 1450rpm | |||
Bore | 190mm | ||||||
Stroke | 210mm | ||||||
Total displacement | 35.73L | ||||||
Compression ratio | 14:1 | ||||||
Minimal stable speed | 400kw | 540kw | 585kw | 650kw | |||
Fuel consumption | ≤204g/kW.h | ||||||
Oil consumption | ≤1.2g/kW.h | ||||||
Starting method | Electric starting or air starting | ||||||
Outline size(LxWxH) | 3000x1193x1643mm | ||||||
Net weight | 3960kg | ||||||
